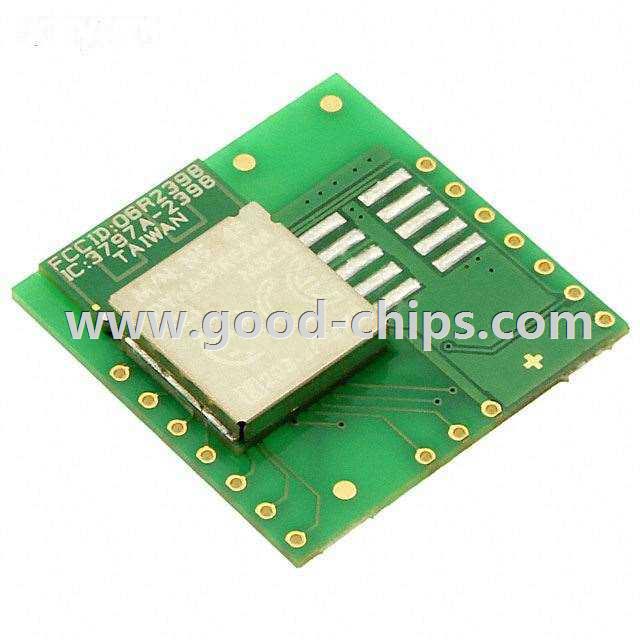

Manufacturer Part Number: | N548M5CB-TRAY |
---|---|
Manufacturer: | Dynastream Innovations Inc. |
Product Category: | RF Transceiver Modules |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | RF TXRX MOD BLUETOOTH TRACE ANT |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | N548M5CB-TRAY Datasheet |
Internal Part Number | 898-N548M5CB-TRAY | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector IoT Product Selector | |
Featured Product | N5 ANT SoC Module Series | |
Category | RF/IF and RFID | |
Family | RF Transceiver Modules | |
Manufacturer | Dynastream Innovations Inc. | |
Series | N5 | |
Packaging | Tray | |
Part Status | Obsolete | |
RF Family/Standard | Bluetooth | |
Protocol | Bluetooth v4.1 | |
Modulation | - | |
Frequency | 2.4GHz | |
Data Rate | 60kbps | |
Power - Output | 4dBm | |
Sensitivity | -93dBm | |
Serial Interfaces | I²C, SPI, UART | |
Antenna Type | Integrated, Trace | |
Memory Size | 256kB Flash, 16kB RAM | |
Voltage - Supply | 1.8 V ~ 3.6 V | |
Current - Receiving | 16mA | |
Current - Transmitting | 16mA | |
Mounting Type | Surface Mount | |
Operating Temperature | -25°C ~ 75°C | |
Package / Case | Module | |
Standard Package | 20 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | N548M5CB-TRAY | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
N548M5CB-TRAY is in stock for immediate shipping now. We are the distributor of Dynastream Innovations Inc. all series components. The condition of N548M5CB-TRAY is new and unused, you can buy N548M5CB-TRAY Dynastream Innovations Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for N548M5CB-TRAY.
