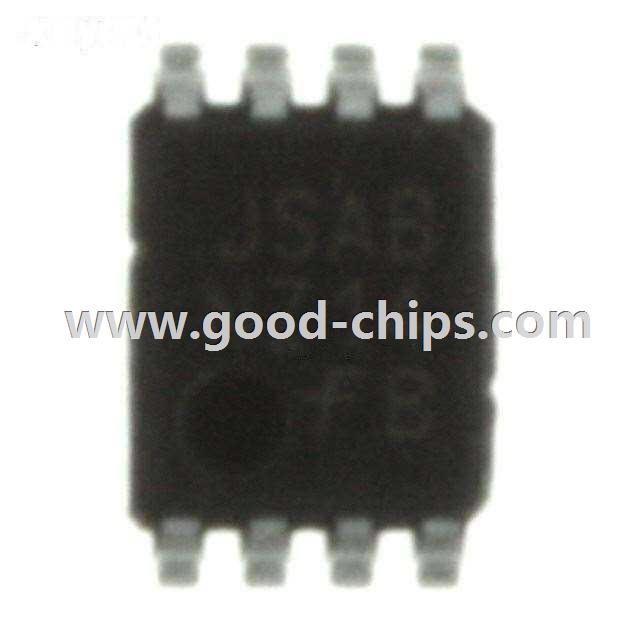

| Manufacturer Part Number: | NC7NZ14K8X |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Logic - Gates and Inverters |
| Available Quantity: | 12010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Inverter IC 3 Channel Schmitt Trigger US8 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NC7NZ14K8X Datasheet |
| Internal Part Number | 898-NC7NZ14K8X | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Mold Compound 27/Aug/2008 | |
| Online Catalog | 7NZ | |
| Category | Integrated Circuits (ICs) | |
| Family | Logic - Gates and Inverters | |
| Manufacturer | Fairchild Semiconductor | |
| Series | 7NZ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Logic Type | Inverter | |
| Number of Circuits | 3 | |
| Number of Inputs | 3 | |
| Features | Schmitt Trigger | |
| Voltage - Supply | 1.65 V ~ 5.5 V | |
| Current - Quiescent (Max) | 1µA | |
| Current - Output High, Low | 32mA, 32mA | |
| Logic Level - Low | 0.25 V ~ 1.2 V | |
| Logic Level - High | 1.5 V ~ 3.6 V | |
| Max Propagation Delay @ V, Max CL | 5.9ns @ 5V, 50pF | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |
| Supplier Device Package | US8 | |
| Package / Case | 8-VFSOP (0.091", 2.30mm Width) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NC7NZ14K8X | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NC7NZ14K8X is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of NC7NZ14K8X is new and unused, you can buy NC7NZ14K8X Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NC7NZ14K8X.
