| Manufacturer Part Number: | NCP5623AMUTBG |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | PMIC - LED Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Driver IC 3 Output DC DC Regulator Switched Capacitor (Charge Pump) 30mA 12-LLGA (2x2) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NCP5623AMUTBG Datasheet |
| Internal Part Number | 898-NCP5623AMUTBG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| PCN Obsolescence/ EOL | 2Q2016 Product EOL 22/Jul/2016 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - LED Drivers | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Last Time Buy | |
| Type | DC DC Regulator | |
| Topology | Switched Capacitor (Charge Pump) | |
| Internal Switch(s) | Yes | |
| Number of Outputs | 3 | |
| Voltage - Supply (Min) | 2.7V | |
| Voltage - Supply (Max) | 5.5V | |
| Voltage - Output | - | |
| Current - Output / Channel | 30mA | |
| Frequency | 1MHz | |
| Dimming | - | |
| Applications | Backlight, Camera Flash | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |
| Package / Case | 12-UFLGA Exposed Pad | |

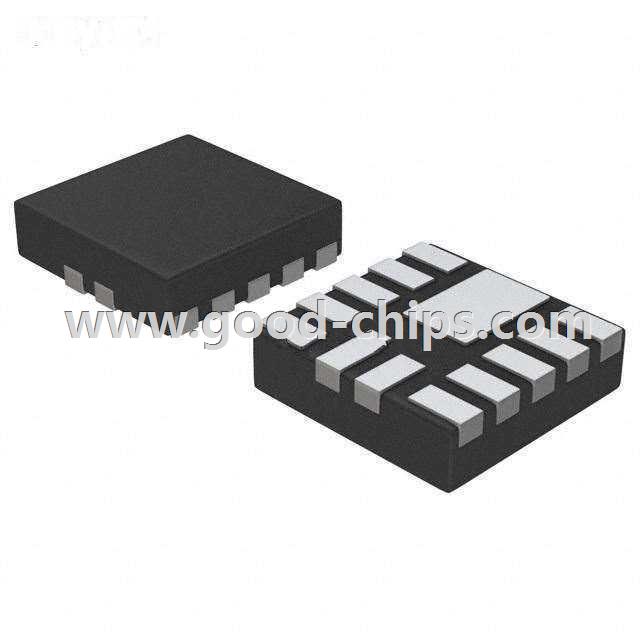

| Supplier Device Package | 12-LLGA (2x2) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NCP5623AMUTBG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NCP5623AMUTBG is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of NCP5623AMUTBG is new and unused, you can buy NCP5623AMUTBG ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NCP5623AMUTBG.
