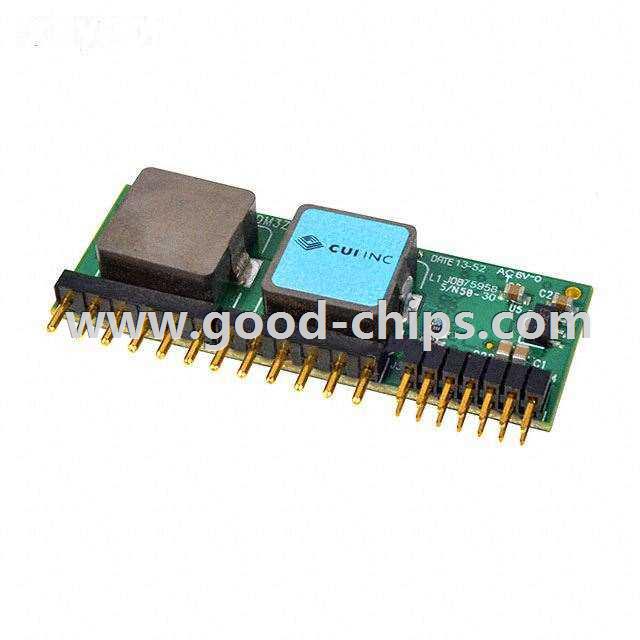

| Manufacturer Part Number: | NDM3Z-90HS-A-001 |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | DC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONVERTER DC/DC 1.8V 90A OUT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NDM3Z-90HS-A-001 Datasheet |
| Internal Part Number | 898-NDM3Z-90HS-A-001 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | NDM3Z-90 Series Cert of Compliance | |
| Design Resources | Novum ACE™ Registration | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | CUI Inc. | |
| Series | Novum® NDM3Z-90 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Non-Isolated PoL Module, Digital | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 7.5V | |
| Voltage - Input (Max) | 14V | |
| Voltage - Output 1 | 0.6 ~ 1.8 V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 90A | |
| Power (Watts) - Manufacture Series | - | |
| Voltage - Isolation | - | |
| Applications | ITE (Commercial) | |
| Features | Digital | |
| Mounting Type | Surface Mount | |
| Package / Case | 26-SMD Module | |
| Size / Dimension | 2.00" L x 0.75" W x 0.37" H (50.8mm x 19.1mm x 9.5mm) | |
| Operating Temperature | -40°C ~ 150°C | |
| Efficiency | 92.5% | |
| Power (Watts) - Max | - | |
| Standard Package | 130 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NDM3Z-90HS-A-001 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NDM3Z-90HS-A-001 is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of NDM3Z-90HS-A-001 is new and unused, you can buy NDM3Z-90HS-A-001 CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NDM3Z-90HS-A-001.
