| Manufacturer Part Number: | NFA31GD1011014D |
|---|---|
| Manufacturer: | Murata Electronics North America |
| Product Category: | EMI/RFI Filters (LC, RC Networks) |
| Available Quantity: | 25010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RC EMI Filter 1st Order Low Pass 4 Channel R = 100 Ohms, C = 100pF 15mA 1206 (3216 Metric), Array, 10 PC Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NFA31GD1011014D Datasheet |
| Internal Part Number | 898-NFA31GD1011014D | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | EMIFIL® NFA31G Series | |
| Category | Filters | |
| Family | EMI/RFI Filters (LC, RC Networks) | |
| Manufacturer | Murata Electronics North America | |
| Series | EMIFIL®, NFA31 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Low Pass | |
| Filter Order | 1st | |
| Technology | RC | |
| Number of Channels | 4 | |
| Center / Cutoff Frequency | - | |
| Attenuation Value | - | |
| Resistance - Channel (Ohms) | 100 | |
| Current | 15mA | |
| Values | R = 100 Ohms, C = 100pF | |
| ESD Protection | No | |
| Operating Temperature | -40°C ~ 85°C | |
| Applications | General Purpose | |
| Voltage - Rated | 6V | |
| Mounting Type | Surface Mount | |

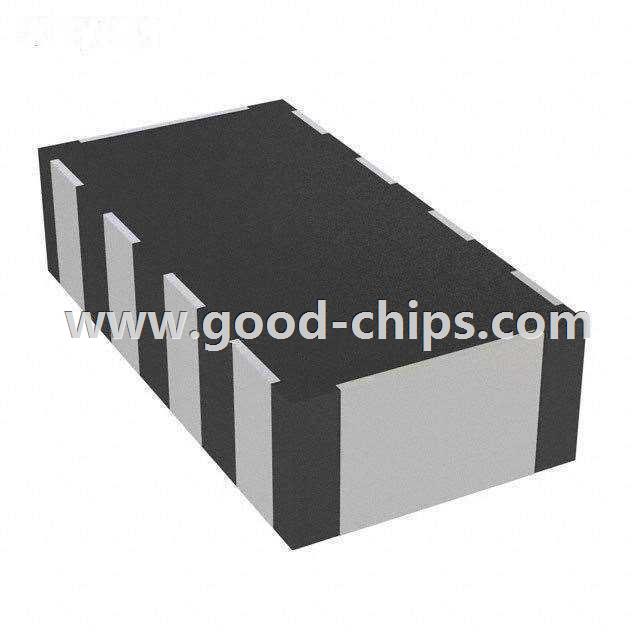

| Package / Case | 1206 (3216 Metric), Array, 10 PC Pad | |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | |
| Height | 0.039" (1.00mm) | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NFA31GD1011014D | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NFA31GD1011014D is in stock for immediate shipping now. We are the distributor of Murata Electronics North America all series components. The condition of NFA31GD1011014D is new and unused, you can buy NFA31GD1011014D Murata Electronics North America with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NFA31GD1011014D.
