| Manufacturer Part Number: | NJG1524APC1-TE1# |
|---|---|
| Manufacturer: | NJR Corporation/NJRC |
| Product Category: | RF Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Switch IC GSM DPDT 3GHz 50 Ohm 16-FFP-C1 (2.5x2.5) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NJG1524APC1-TE1# Datasheet |
| Internal Part Number | 898-NJG1524APC1-TE1# | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | IoT Product Selector | |
| Category | RF/IF and RFID | |
| Family | RF Switches | |
| Manufacturer | NJR Corporation/NJRC | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Frequency - Lower | 50MHz | |
| Frequency - Upper | 3GHz | |
| Isolation @ Frequency | 27dB @ 2GHz | |
| Insertion Loss @ Frequency | 0.5dB @ 2GHz | |
| IIP3 | - | |
| Topology | Reflective | |
| Circuit | DPDT | |
| P1dB | 23dBm (typ) IP1dB | |
| Features | - | |
| Impedance | 50 Ohm | |
| Operating Temperature | -40°C ~ 85°C | |
| Voltage - Supply | - | |
| RF Type | GSM | |

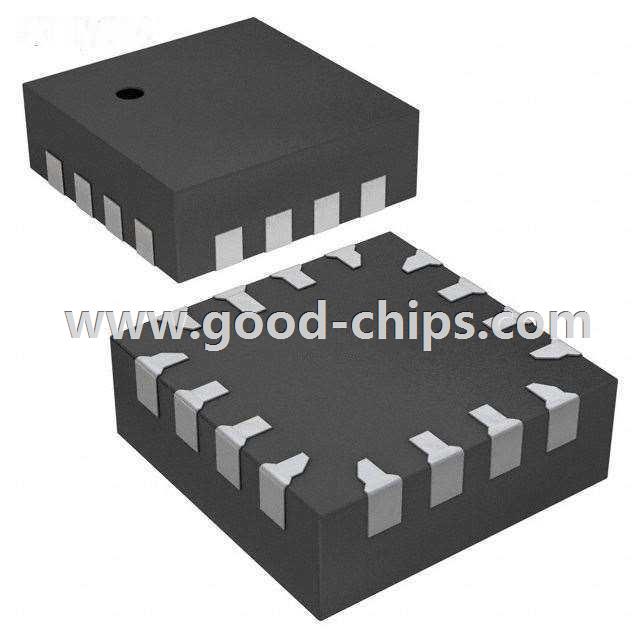

| Package / Case | 16-FFP | |
| Supplier Device Package | 16-FFP-C1 (2.5x2.5) | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NJG1524APC1-TE1# | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NJG1524APC1-TE1# is in stock for immediate shipping now. We are the distributor of NJR Corporation/NJRC all series components. The condition of NJG1524APC1-TE1# is new and unused, you can buy NJG1524APC1-TE1# NJR Corporation/NJRC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NJG1524APC1-TE1#.
