| Manufacturer Part Number: | NLAS5223CLMUTAG |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 4 Circuit IC Switch 2:1 350 mOhm 10-UQFN (1.8x1.4) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NLAS5223CLMUTAG Datasheet |
| Internal Part Number | 898-NLAS5223CLMUTAG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | Interface - Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Switch Circuit | SPDT | |
| Multiplexer/Demultiplexer Circuit | 2:1 | |
| Number of Circuits | 4 | |
| On-State Resistance (Max) | 350 mOhm | |
| Channel-to-Channel Matching (ΔRon) | 50 mOhm (Max) | |
| Voltage - Supply, Single (V+) | 1.65 V ~ 4.5 V | |
| Voltage - Supply, Dual (V±) | - | |
| Switch Time (Ton, Toff) (Max) | 50ns, 30ns | |
| -3db Bandwidth | 24MHz | |
| Charge Injection | 38pC | |
| Channel Capacitance (CS(off), CD(off)) | 60pF | |
| Current - Leakage (IS(off)) (Max) | 5nA | |
| Crosstalk | -70dB @ 100kHz | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Package / Case | 6-UFQFN | |

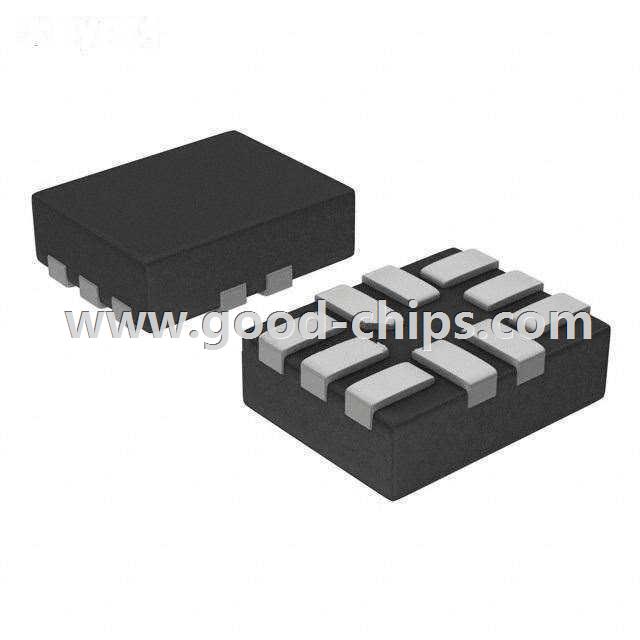

| Supplier Device Package | 10-UQFN (1.8x1.4) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NLAS5223CLMUTAG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NLAS5223CLMUTAG is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of NLAS5223CLMUTAG is new and unused, you can buy NLAS5223CLMUTAG ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NLAS5223CLMUTAG.
