| Manufacturer Part Number: | NLSX3018MUTAG |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | Logic - Translators, Level Shifters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Voltage Level Translator Bidirectional 1 Circuit 8 Channel 110Mbps 20-UDFN (4x2) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NLSX3018MUTAG Datasheet |
| Internal Part Number | 898-NLSX3018MUTAG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | Logic Products DFN,QFN Qualification 10/Dec/2013 | |
| PCN Packaging | Covering Tape/Material Chg 20/May/2016 | |
| Online Catalog | NLSX Series | |
| Category | Integrated Circuits (ICs) | |
| Family | Logic - Translators, Level Shifters | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Translator Type | Voltage Level | |
| Channel Type | Bidirectional | |
| Number of Circuits | 1 | |
| Channels per Circuit | 8 | |
| Voltage - VCCA | 0.9 V ~ 4.5 V | |
| Voltage - VCCB | 1.3 V ~ 4.5 V | |
| Input Signal | - | |
| Output Signal | - | |
| Output Type | Tri-State, Non-Inverted | |
| Data Rate | 110Mbps | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Features | Auto-Direction Sensing | |
| Mounting Type | Surface Mount | |

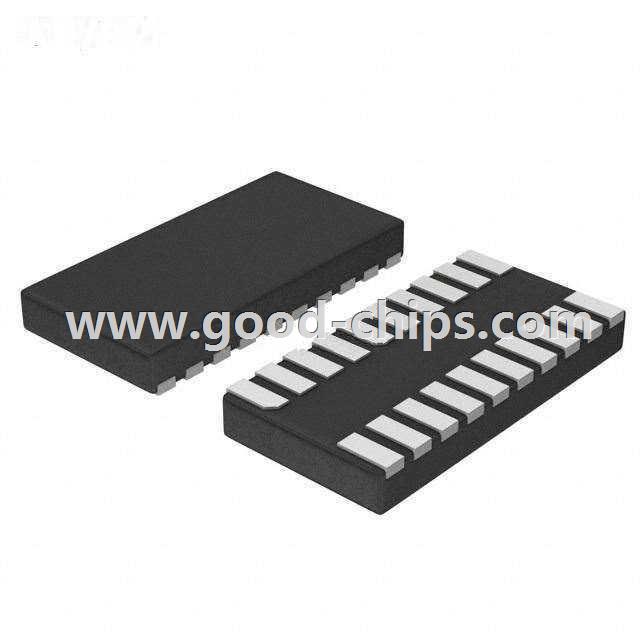

| Package / Case | 20-UFDFN | |
| Supplier Device Package | 20-UDFN (4x2) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NLSX3018MUTAG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NLSX3018MUTAG is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of NLSX3018MUTAG is new and unused, you can buy NLSX3018MUTAG ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NLSX3018MUTAG.
