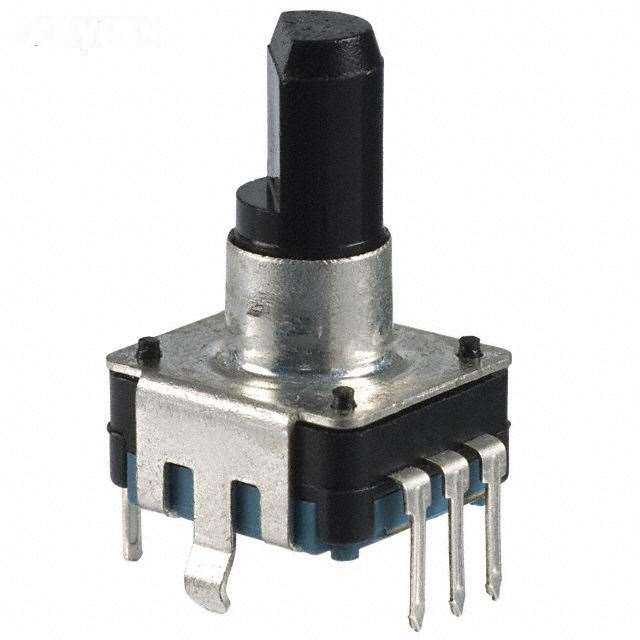

Manufacturer Part Number: | NSE12DSV2420 |
---|---|
Manufacturer: | C&K Components |
Product Category: | Encoders |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | ENCODER MECH 24PULSE SELECT 20MM |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | NSE12DSV2420 Datasheet |
Internal Part Number | 898-NSE12DSV2420 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Sensors, Transducers | |
Family | Encoders | |
Manufacturer | C&K Components | |
Series | NSE12 | |
Part Status | Obsolete | |
Encoder Type | Mechanical | |
Output Type | Quadrature (Incremental) | |
Pulses per Revolution | 24 | |
Voltage - Supply | - | |
Actuator Type | 6mm Dia Flatted End | |
Detent | Yes | |
Built in Switch | Yes | |
Mounting Type | PCB, Through Hole | |
Orientation | Vertical | |
Termination Style | PC Pin | |
Rotational Life (Cycles Min) | 30K | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | NSE12DSV2420 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
NSE12DSV2420 is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of NSE12DSV2420 is new and unused, you can buy NSE12DSV2420 C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NSE12DSV2420.
