| Manufacturer Part Number: | NSR0230M2T5G |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Diode Schottky 30V 200mA (DC) Surface Mount SOD-723 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NSR0230M2T5G Datasheet |
| Internal Part Number | 898-NSR0230M2T5G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 02/Jan/2007 | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 30V | |
| Current - Average Rectified (Io) | 200mA (DC) | |
| Voltage - Forward (Vf) (Max) @ If | 500mV @ 200mA | |
| Speed | Small Signal =< 200mA (Io), Any Speed | |
| Reverse Recovery Time (trr) | - | |
| Current - Reverse Leakage @ Vr | 100µA @ 30V | |
| Capacitance @ Vr, F | - | |
| Mounting Type | Surface Mount | |

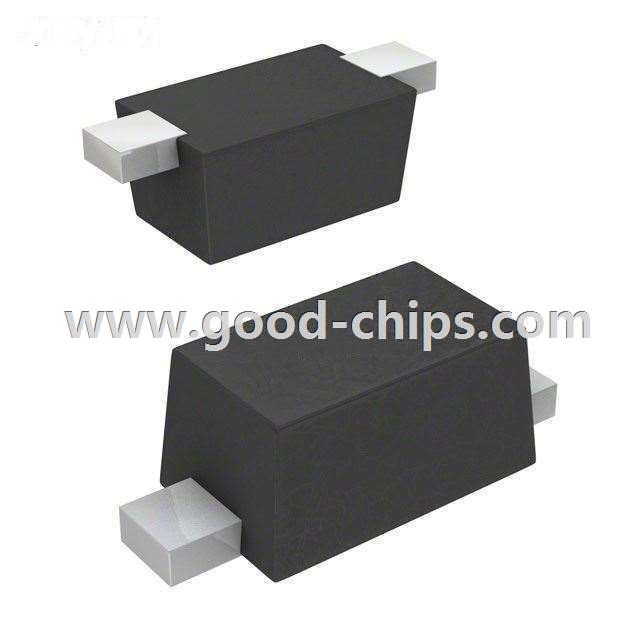

| Package / Case | SOD-723 | |
| Supplier Device Package | SOD-723 | |
| Operating Temperature - Junction | -55°C ~ 125°C | |
| Standard Package | 8,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NSR0230M2T5G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NSR0230M2T5G is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of NSR0230M2T5G is new and unused, you can buy NSR0230M2T5G ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NSR0230M2T5G.
