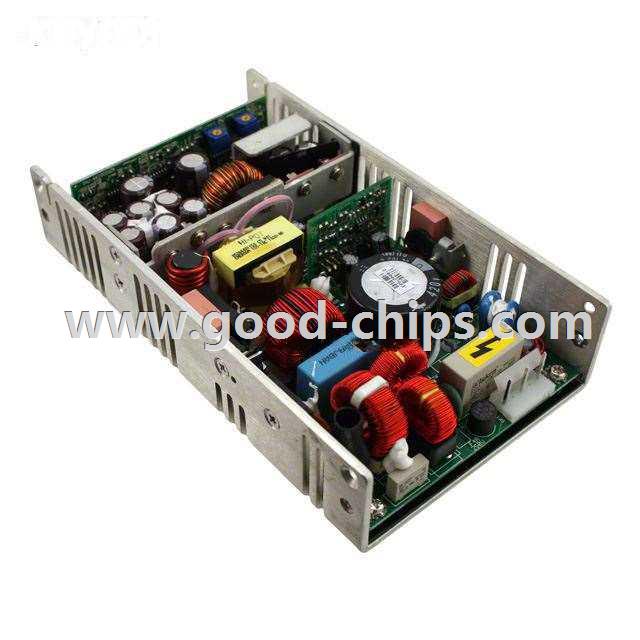

| Manufacturer Part Number: | NTQ123 |
|---|---|
| Manufacturer: | Artesyn Embedded Technologies |
| Product Category: | AC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | AC/DC CNVRTR 3.3V 5V +/-12V 70W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NTQ123 Datasheet |
| Internal Part Number | 898-NTQ123 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Packaging | CSA Marking 20/Sep/2013 | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | AC DC Converters | |
| Manufacturer | Artesyn Embedded Technologies | |
| Series | - | |
| Part Status | Obsolete | |
| Type | Open Frame | |
| Number of Outputs | 4 | |
| Voltage - Input | 85 ~ 264 VAC | |
| Voltage - Output 1 | 3.3V | |
| Voltage - Output 2 | 5V | |
| Voltage - Output 3 | 12V | |
| Voltage - Output 4 | -12V | |
| Current - Output (Max) | 14A, 12.5A, 1A, 500mA | |
| Power (Watts) | 70W (120W Forced Air) | |
| Applications | ITE (Commercial) | |
| Voltage - Isolation | - | |
| Efficiency | 65% | |
| Operating Temperature | 0°C ~ 50°C | |
| Features | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | |
| Mounting Type | Chassis Mount | |
| Size / Dimension | 7.00" L x 4.00" W x 1.50" H (177.8mm x 101.6mm x 38.1mm) | |
| Minimum Load Required | Yes | |
| Approvals | CB, CE | |
| Power (Watts) - Max | 70W (120W Forced Air) | |
| Standard Package | 126 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NTQ123 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NTQ123 is in stock for immediate shipping now. We are the distributor of Artesyn Embedded Technologies all series components. The condition of NTQ123 is new and unused, you can buy NTQ123 Artesyn Embedded Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NTQ123.
