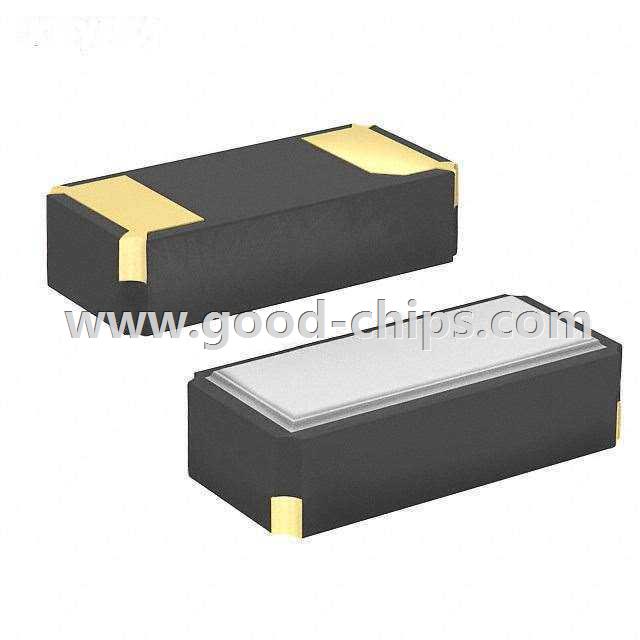

Manufacturer Part Number: | NX3215SA-32.768K-STD-MUA-8 |
---|---|
Manufacturer: | NDK |
Product Category: | Crystals |
Available Quantity: | 74404 Pieces |
Unit Price: | Quote by Email |
Description: | 32.768kHz ±20ppm Crystal 12.5pF 70 kOhm -40°C ~ 85°C Surface Mount 2-SMD |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | NX3215SA-32.768K-STD-MUA-8 Datasheet |
Internal Part Number | 898-NX3215SA-32.768K-STD-MUA-8 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | NX3215SA Series 32.768 KHz SMD Crystals | |
Online Catalog | NX3215SA Series | |
Category | Crystals and Oscillators | |
Family | Crystals | |
Manufacturer | NDK | |
Series | NX3215SA | |
Packaging | Cut Tape (CT) | |
Part Status | Active | |
Type | kHz Crystal (Tuning Fork) | |
Frequency | 32.768kHz | |
Frequency Stability | - | |
Frequency Tolerance | ±20ppm | |
Load Capacitance | 12.5pF | |
ESR (Equivalent Series Resistance) | 70 kOhm | |
Operating Mode | Fundamental | |
Operating Temperature | -40°C ~ 85°C | |
Ratings | - | |
Mounting Type | Surface Mount | |
Package / Case | 2-SMD | |
Size / Dimension | 0.126" L x 0.059" W (3.20mm x 1.50mm) | |
Height | 0.035" (0.90mm) | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | NX3215SA-32.768K-STD-MUA-8 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
NX3215SA-32.768K-STD-MUA-8 is in stock for immediate shipping now. We are the distributor of NDK all series components. The condition of NX3215SA-32.768K-STD-MUA-8 is new and unused, you can buy NX3215SA-32.768K-STD-MUA-8 NDK with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NX3215SA-32.768K-STD-MUA-8.
