| Manufacturer Part Number: | NZL7V5AXV3T1 |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | TVS - Diodes |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TVS DIODE 5VWM 8.8VC SC89 |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NZL7V5AXV3T1 Datasheet |
| Internal Part Number | 898-NZL7V5AXV3T1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 06/Oct/2006 | |
| Category | Circuit Protection | |
| Family | TVS - Diodes | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Type | Zener | |
| Unidirectional Channels | 2 | |
| Bidirectional Channels | - | |
| Voltage - Reverse Standoff (Typ) | 5V | |
| Voltage - Breakdown (Min) | 7.12V | |
| Voltage - Clamping (Max) @ Ipp | 8.8V | |
| Current - Peak Pulse (10/1000µs) | 13.5A (8/20µs) | |
| Power - Peak Pulse | 75W | |
| Power Line Protection | No | |
| Applications | General Purpose | |
| Capacitance @ Frequency | - | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

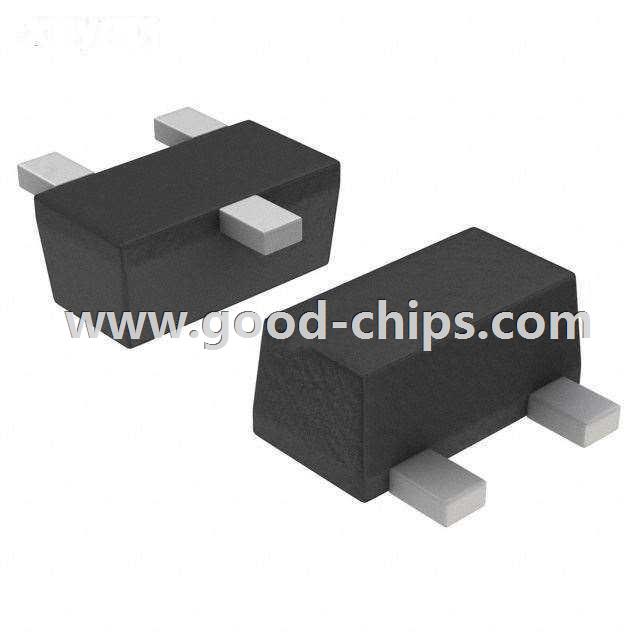

| Package / Case | SC-89, SOT-490 | |
| Supplier Device Package | SC-89-3 | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NZL7V5AXV3T1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NZL7V5AXV3T1 is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of NZL7V5AXV3T1 is new and unused, you can buy NZL7V5AXV3T1 ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NZL7V5AXV3T1.
