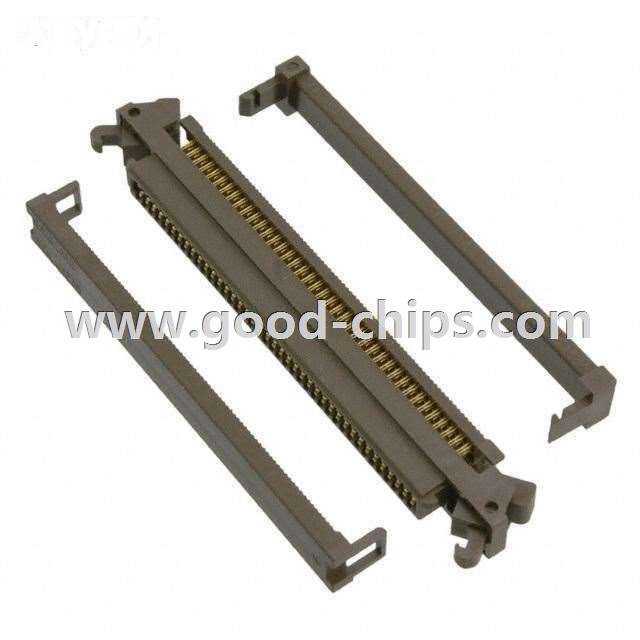

| Manufacturer Part Number: | P25LE-080S-DA |
|---|---|
| Manufacturer: | 3M |
| Product Category: | Rectangular Connectors - Free Hanging, Panel Mount |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 80 Position Rectangular Socket Connector IDC Gold 30 AWG |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | P25LE-080S-DA Datasheet |
| Internal Part Number | 898-P25LE-080S-DA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | Interconnect Mating Guide | |
| 3D Model | P25LE-080S-DA.stp P25LE-080S-DA.igs P25LE-080S-DA.x_t | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Free Hanging, Panel Mount | |
| Manufacturer | 3M | |
| Series | P25LE | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Socket | |
| Contact Type | Outer Shroud Contact | |
| Number of Positions | 80 | |
| Pitch | 0.050" (1.27mm) | |
| Number of Rows | 2 | |
| Row Spacing | - | |
| Mounting Type | Free Hanging (In-Line) | |
| Fastening Type | Latch Lock/Eject Hooks | |
| Cable Termination | IDC | |
| Wire Type | Ribbon Cable | |
| Wire Gauge | 30 AWG | |
| Features | Feed Through, Strain Relief | |
| Contact Finish | Gold | |
| Contact Finish Thickness | Flash | |
| Color | Brown | |
| Standard Package | 203 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | P25LE-080S-DA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
P25LE-080S-DA is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of P25LE-080S-DA is new and unused, you can buy P25LE-080S-DA 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for P25LE-080S-DA.
