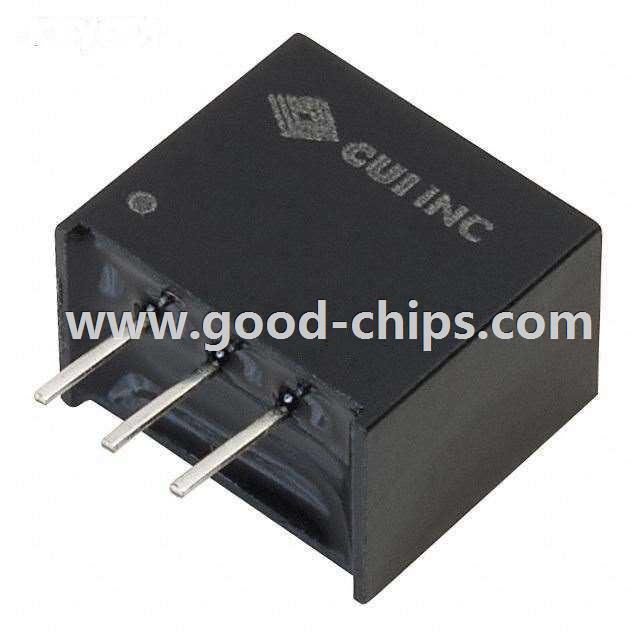

| Manufacturer Part Number: | P7805-Q24-S12-S |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | DC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONVERT DC/DC 0.5A 12V OUT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | P7805-Q24-S12-S Datasheet |
| Internal Part Number | 898-P7805-Q24-S12-S | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | High Efficiency Switching DC Regulator EMI Regulations and Mitigation Considerations for Switching Power Supplies Reliability Considerations for Power Supplies Power Supply Safety Standards, Agencies and Marks Thermal Management of Power Supplies | |
| RoHS Information | P7805-S Series Cert of Compliance | |
| 3D Model | P7805-Q24-S12-S | |
| Online Catalog | P7805-S Series | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | CUI Inc. | |
| Series | P7805-S | |
| Packaging | Tube | |
| Part Status | Active | |
| Type | Non-Isolated PoL Module | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 15V | |
| Voltage - Input (Max) | 32V | |
| Voltage - Output 1 | 12V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 500mA | |
| Power (Watts) - Manufacture Series | 6W | |
| Voltage - Isolation | - | |
| Applications | ITE (Commercial) | |
| Features | OTP, SCP | |
| Mounting Type | Through Hole | |
| Package / Case | 3-SIP Module | |
| Size / Dimension | 0.46" L x 0.30" W x 0.40" H (11.6mm x 7.5mm x 10.2mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | 95% | |
| Power (Watts) - Max | 6W | |
| Standard Package | 43 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | P7805-Q24-S12-S | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
P7805-Q24-S12-S is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of P7805-Q24-S12-S is new and unused, you can buy P7805-Q24-S12-S CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for P7805-Q24-S12-S.
