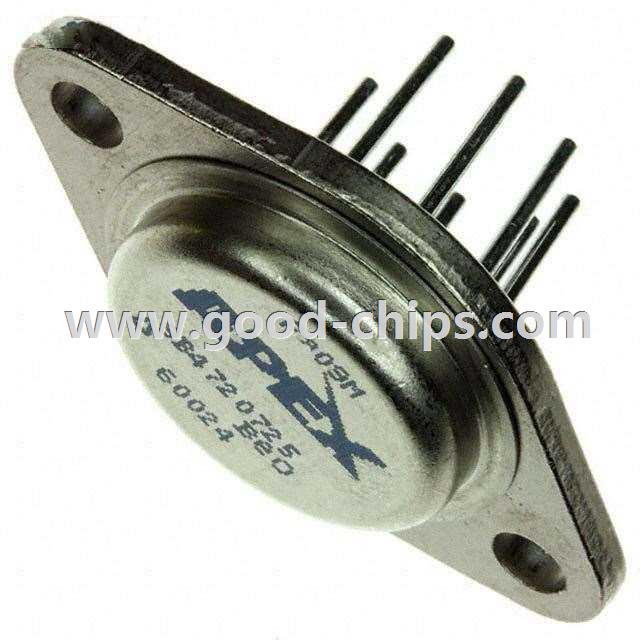

| Manufacturer Part Number: | PA09M |
|---|---|
| Manufacturer: | Apex Microtechnology |
| Product Category: | Linear - Amplifiers - Video Amps and Modules |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC OP AMP VID 80V TO-3-8 |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PA09M Datasheet |
| Internal Part Number | 898-PA09M | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Power Analog Portfolio | |
| Category | Integrated Circuits (ICs) | |
| Family | Linear - Amplifiers - Video Amps and Modules | |
| Manufacturer | Apex Microtechnology | |
| Series | Apex Precision Power® | |
| Packaging | Tube | |
| Part Status | Active | |
| Applications | General Purpose | |
| Output Type | - | |
| Number of Circuits | 1 | |
| -3db Bandwidth | - | |
| Slew Rate | 220 V/µs | |
| Current - Supply | 70mA | |
| Current - Output / Channel | 4.5A | |
| Voltage - Supply, Single/Dual (±) | 24 V ~ 80 V, ±12 V ~ 40 V | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-3-8 | |
| Supplier Device Package | TO-3-8 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PA09M | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PA09M is in stock for immediate shipping now. We are the distributor of Apex Microtechnology all series components. The condition of PA09M is new and unused, you can buy PA09M Apex Microtechnology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PA09M.
