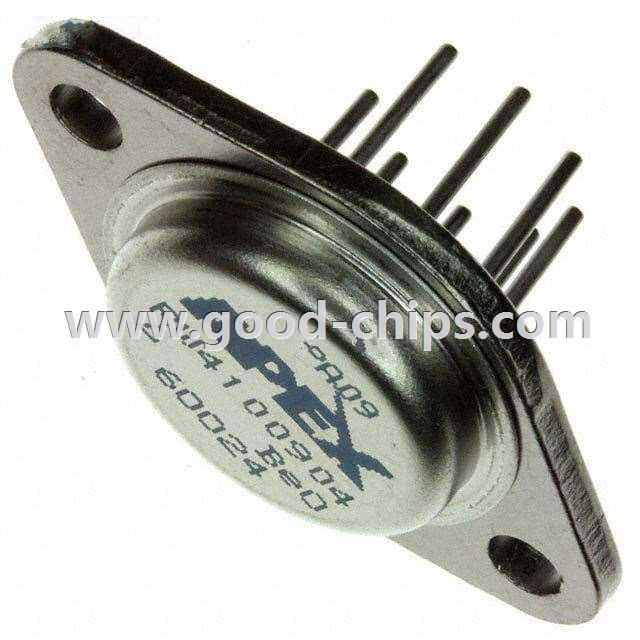

| Manufacturer Part Number: | PA09 |
|---|---|
| Manufacturer: | Apex Microtechnology |
| Product Category: | Linear - Amplifiers - Video Amps and Modules |
| Available Quantity: | 9039 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC PWR AMP 80V 5A 8PIN TO3 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PA09 Datasheet |
| Internal Part Number | 898-PA09 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Power Analog Portfolio | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | Linear - Amplifiers - Video Amps and Modules | |
| Manufacturer | Apex Microtechnology | |
| Series | Apex Precision Power® | |
| Packaging | Tube | |
| Part Status | Active | |
| Applications | General Purpose | |
| Output Type | - | |
| Number of Circuits | 1 | |
| -3db Bandwidth | - | |
| Slew Rate | 220 V/µs | |
| Current - Supply | 70mA | |
| Current - Output / Channel | 4.5A | |
| Voltage - Supply, Single/Dual (±) | 24 V ~ 80 V, ±12 V ~ 40 V | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-3-8 | |
| Supplier Device Package | TO-3-8 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PA09 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PA09 is in stock for immediate shipping now. We are the distributor of Apex Microtechnology all series components. The condition of PA09 is new and unused, you can buy PA09 Apex Microtechnology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PA09.
