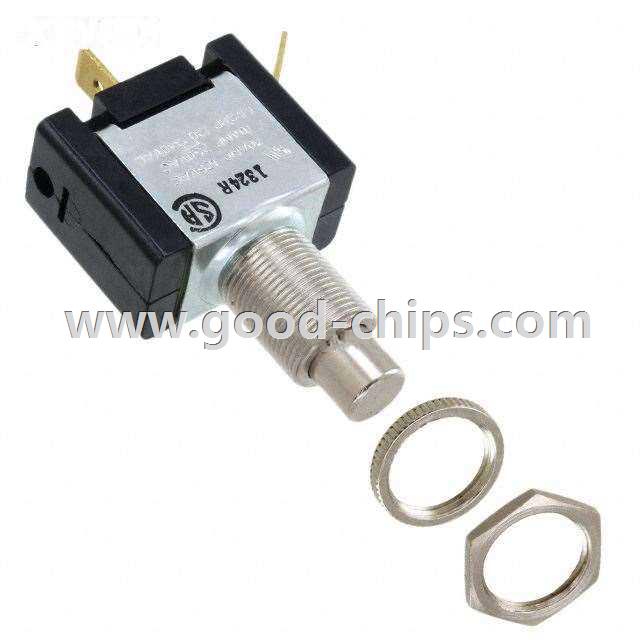

| Manufacturer Part Number: | PA301 |
|---|---|
| Manufacturer: | Carling Technologies |
| Product Category: | Pushbutton Switches |
| Available Quantity: | 9020 Pieces |
| Unit Price: | Quote by Email |
| Description: | Pushbutton Switch SPST Standard Panel Mount, Rear |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PA301 Datasheet |
| Internal Part Number | 898-PA301 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | P Series | |
| Category | Switches | |
| Family | Pushbutton Switches | |
| Manufacturer | Carling Technologies | |
| Series | P | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Standard | |
| Circuit | SPST | |
| Switch Function | On-Off | |
| Current Rating | 20A (AC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | - | |
| Actuator Type | Round, Plunger, Metal | |
| Color - Actuator/Cap | Silver | |
| Illumination Type, Color | - | |
| Illumination Voltage (Nominal) | - | |
| Mounting Type | Panel Mount, Rear | |
| Termination Style | Quick Connect - 0.250" (6.3mm) | |
| Ingress Protection | - | |
| Features | - | |
| Panel Cutout Dimensions | Circular - 12.70mm Dia | |
| Operating Temperature | 0°C ~ 85°C | |
| Mechanical Life | 100,000 Cycles | |
| Electrical Life | 50,000 Cycles | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PA301 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PA301 is in stock for immediate shipping now. We are the distributor of Carling Technologies all series components. The condition of PA301 is new and unused, you can buy PA301 Carling Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PA301.
