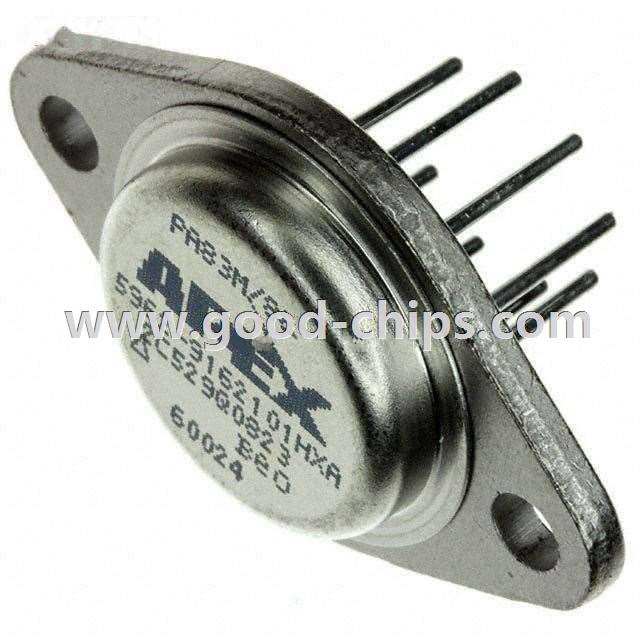

Manufacturer Part Number: | PA83M/883 |
---|---|
Manufacturer: | Apex Microtechnology |
Product Category: | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Power Amplifier 1 Circuit TO-3-8 |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | PA83M/883 Datasheet |
Internal Part Number | 898-PA83M/883 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Power Analog Portfolio | |
PCN Design/Specification | PA83M/883 Iq Increase 28/Apr/2014 | |
PCN Assembly/Origin | Iq Values Revision 24/Jul/2015 | |
Category | Integrated Circuits (ICs) | |
Family | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps | |
Manufacturer | Apex Microtechnology | |
Series | Apex Precision Power® | |
Packaging | Tube | |
Part Status | Active | |
Amplifier Type | Power | |
Number of Circuits | 1 | |
Output Type | - | |
Slew Rate | 30 V/µs | |
Gain Bandwidth Product | 5MHz | |
-3db Bandwidth | - | |
Current - Input Bias | 5pA | |
Voltage - Input Offset | 1.5mV | |
Current - Supply | 6mA | |
Current - Output / Channel | 75mA | |
Voltage - Supply, Single/Dual (±) | 30 V ~ 300 V, ±15 V ~ 150 V | |
Operating Temperature | -55°C ~ 125°C | |
Mounting Type | Through Hole | |
Package / Case | TO-3-8 | |
Supplier Device Package | TO-3-8 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | PA83M/883 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
PA83M/883 is in stock for immediate shipping now. We are the distributor of Apex Microtechnology all series components. The condition of PA83M/883 is new and unused, you can buy PA83M/883 Apex Microtechnology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PA83M/883.
