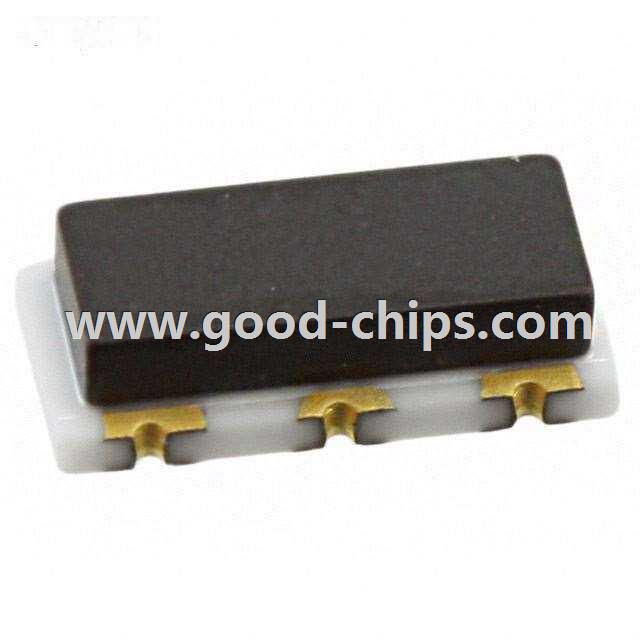

| Manufacturer Part Number: | PBRC-3.68HR |
|---|---|
| Manufacturer: | AVX Corp/Kyocera Corp |
| Product Category: | Resonators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 3.68MHz Ceramic Resonator Built in Capacitor 30pF ±0.5% -40°C ~ 85°C Surface Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PBRC-3.68HR Datasheet |
| Internal Part Number | 898-PBRC-3.68HR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Crystals and Oscillators | |
| Family | Resonators | |
| Manufacturer | AVX Corp/Kyocera Corp | |
| Series | PBRC-H, Kyocera | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Ceramic | |
| Frequency | 3.68MHz | |
| Frequency Stability | ±0.5% | |
| Frequency Tolerance | ±0.5% | |
| Features | Built in Capacitor | |
| Capacitance | 30pF | |
| Impedance | - | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 3-SMD, Non-Standard | |
| Size / Dimension | 0.291" L x 0.134" W (7.40mm x 3.40mm) | |
| Height | 0.079" (2.00mm) | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PBRC-3.68HR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PBRC-3.68HR is in stock for immediate shipping now. We are the distributor of AVX Corp/Kyocera Corp all series components. The condition of PBRC-3.68HR is new and unused, you can buy PBRC-3.68HR AVX Corp/Kyocera Corp with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PBRC-3.68HR.
