| Manufacturer Part Number: | PCA9554BBSHP |
|---|---|
| Manufacturer: | NXP Semiconductors |
| Product Category: | Interface - I/O Expanders |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | I/O Expander 8 I²C, SMBus 400kHz 16-HVQFN (3x3) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PCA9554BBSHP Datasheet |
| Internal Part Number | 898-PCA9554BBSHP | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Introduction to GPIO Expanders | |
| Video File | Low-voltage I2C Agile I/O expanders from NXP | |
| Featured Product | 1.65 V GPIO Expanders with Agile I/O | |
| Category | Integrated Circuits (ICs) | |
| Family | Interface - I/O Expanders | |
| Manufacturer | NXP Semiconductors | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Number of I/O | 8 | |
| Interface | I²C, SMBus | |
| Interrupt Output | Yes | |
| Features | POR | |
| Output Type | Push-Pull | |
| Current - Output Source/Sink | 10mA, 25mA | |
| Frequency - Clock | 400kHz | |
| Voltage - Supply | 1.65 V ~ 5.5 V | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 16-VFQFN Exposed Pad | |

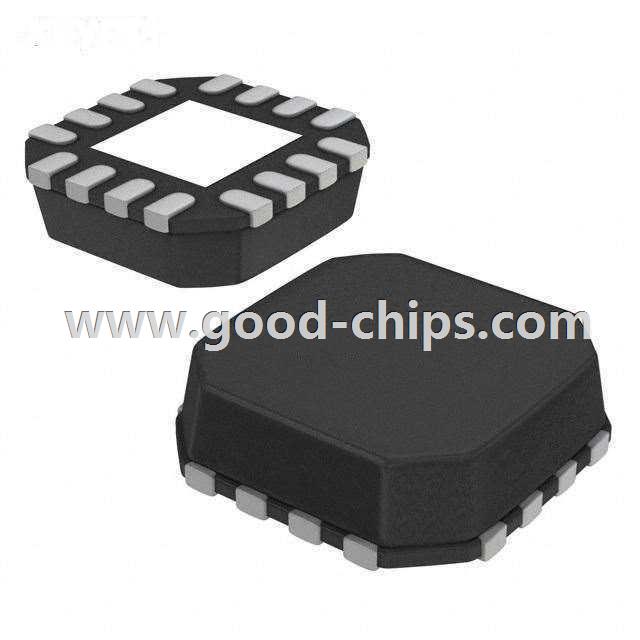

| Supplier Device Package | 16-HVQFN (3x3) | |
| Standard Package | 6,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PCA9554BBSHP | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PCA9554BBSHP is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of PCA9554BBSHP is new and unused, you can buy PCA9554BBSHP NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PCA9554BBSHP.
