| Manufacturer Part Number: | PCM1774RGPTG4 |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | Data Acquisition - ADCs/DACs - Special Purpose |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | DAC, Audio 16 bit 50k DSP, I²S 20-QFN (4x4) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PCM1774RGPTG4 Datasheet |
| Internal Part Number | 898-PCM1774RGPTG4 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Data Converter Basics | |
| PCN Design/Specification | Copper Wire Base Material 30/Apr/2014 | |
| PCN Assembly/Origin | TSMC-WF9 Wafer Fab Site Retraction 10/Sep/2013 | |
| Manufacturer Product Page | PCM1774RGPTG4 Specifications | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | Data Acquisition - ADCs/DACs - Special Purpose | |
| Manufacturer | Texas Instruments | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | DAC, Audio | |
| Resolution (Bits) | 16 b | |
| Sampling Rate (Per Second) | 50k | |
| Data Interface | DSP, I²S | |
| Voltage Supply Source | Analog and Digital | |
| Voltage - Supply | 1.7 V ~ 3.6 V | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |

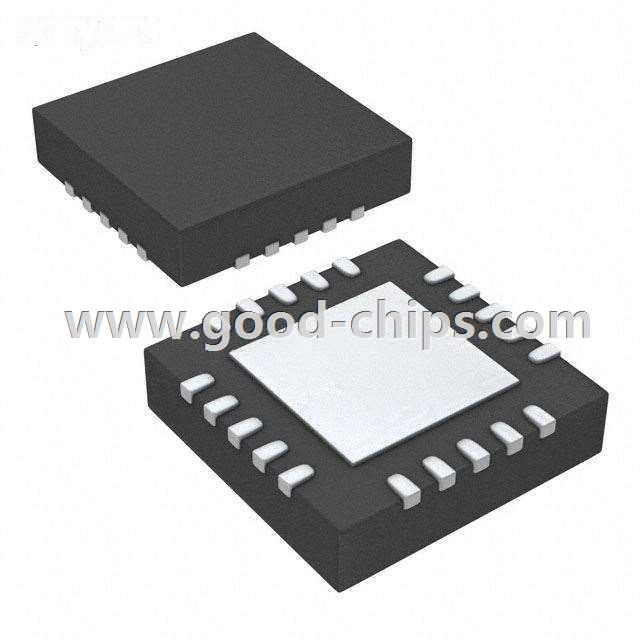

| Package / Case | 20-VFQFN Exposed Pad | |
| Supplier Device Package | 20-QFN (4x4) | |
| Standard Package | 250 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PCM1774RGPTG4 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PCM1774RGPTG4 is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of PCM1774RGPTG4 is new and unused, you can buy PCM1774RGPTG4 Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PCM1774RGPTG4.
