| Manufacturer Part Number: | PCP1302-TD-H |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 10010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET P-CH 60V 3A SOT89 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PCP1302-TD-H Datasheet |
| Internal Part Number | 898-PCP1302-TD-H | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | P-Channel Logic Level Gate FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| FET Type | MOSFET P-Channel, Metal Oxide | |
| FET Feature | Logic Level Gate, 4V Drive | |
| Drain to Source Voltage (Vdss) | 60V | |
| Current - Continuous Drain (Id) @ 25°C | 3A (Ta) | |
| Rds On (Max) @ Id, Vgs | 266 mOhm @ 1.5A, 10V | |
| Vgs(th) (Max) @ Id | 2.6V @ 1mA | |
| Gate Charge (Qg) @ Vgs | 6.4nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 262pF @ 20V | |
| Power - Max | 1.3W | |
| Operating Temperature | 150°C (TJ) | |
| Mounting Type | Surface Mount | |

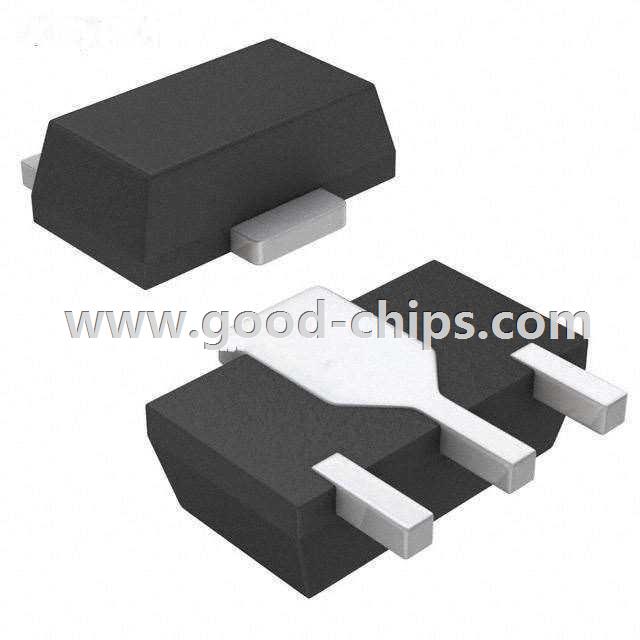

| Package / Case | TO-243AA | |
| Supplier Device Package | SOT-89/PCP-1 | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PCP1302-TD-H | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PCP1302-TD-H is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of PCP1302-TD-H is new and unused, you can buy PCP1302-TD-H ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PCP1302-TD-H.
