| Manufacturer Part Number: | PE42540LGBC-Z |
|---|---|
| Manufacturer: | Peregrine Semiconductor |
| Product Category: | RF Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Switch IC ATE, ISM, PHS, UMTS, WLL SP4T 8GHz 50 Ohm 32-LGA (5x5) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PE42540LGBC-Z Datasheet |
| Internal Part Number | 898-PE42540LGBC-Z | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | IoT Product Selector | |
| Featured Product | PE42540 SP4T 8 GHz UltraCMOS® RF Switch | |
| Category | RF/IF and RFID | |
| Family | RF Switches | |
| Manufacturer | Peregrine Semiconductor | |
| Series | UltraCMOS®, HaRP™ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Frequency - Lower | 10Hz | |
| Frequency - Upper | 8GHz | |
| Isolation @ Frequency | 31dB @ 8GHz (typ) | |
| Insertion Loss @ Frequency | 1.2dB @ 8GHz | |
| IIP3 | 58dBm (typ) | |
| Topology | Absorptive | |
| Circuit | SP4T | |
| P1dB | 33dBm (typ) IP1dB | |
| Features | DC Blocked | |
| Impedance | 50 Ohm | |
| Operating Temperature | -40°C ~ 85°C | |
| Voltage - Supply | 3 V ~ 3.55 V | |
| RF Type | ATE, ISM, PHS, UMTS, WLL | |
| Package / Case | 32-TFQFN Exposed Pad | |

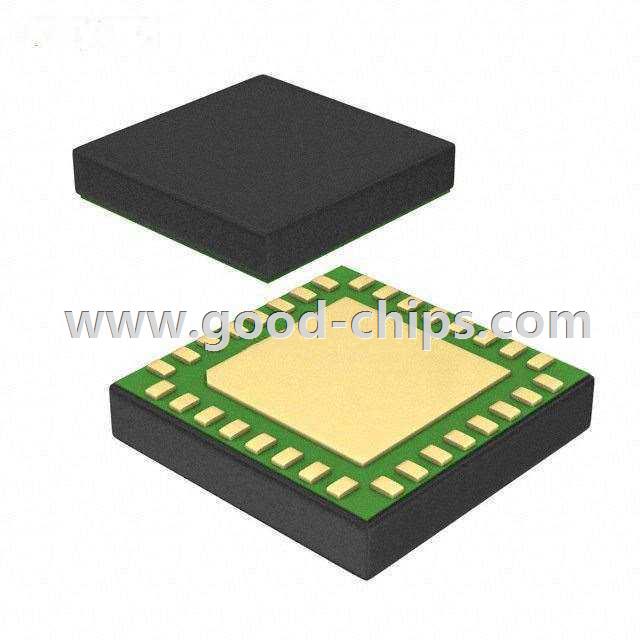

| Supplier Device Package | 32-LGA (5x5) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PE42540LGBC-Z | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PE42540LGBC-Z is in stock for immediate shipping now. We are the distributor of Peregrine Semiconductor all series components. The condition of PE42540LGBC-Z is new and unused, you can buy PE42540LGBC-Z Peregrine Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PE42540LGBC-Z.
