| Manufacturer Part Number: | PE42641MLBC-Z |
|---|---|
| Manufacturer: | Peregrine Semiconductor |
| Product Category: | RF Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Switch IC General Purpose SP4T 3GHz 50 Ohm 16-QFN (3x3) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PE42641MLBC-Z Datasheet |
| Internal Part Number | 898-PE42641MLBC-Z | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | IoT Product Selector | |
| Category | RF/IF and RFID | |
| Family | RF Switches | |
| Manufacturer | Peregrine Semiconductor | |
| Series | UltraCMOS®, HaRP™ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Frequency - Lower | 100MHz | |
| Frequency - Upper | 3GHz | |
| Isolation @ Frequency | 27.5dB @ 2.2GHz (typ) | |
| Insertion Loss @ Frequency | 0.55dB @ 2.2GHz | |
| IIP3 | 68dBm | |
| Topology | Reflective | |
| Circuit | SP4T | |
| P1dB | - | |
| Features | DC Blocked | |
| Impedance | 50 Ohm | |
| Operating Temperature | -40°C ~ 85°C | |
| Voltage - Supply | 2.65 V ~ 2.85 V | |
| RF Type | General Purpose | |

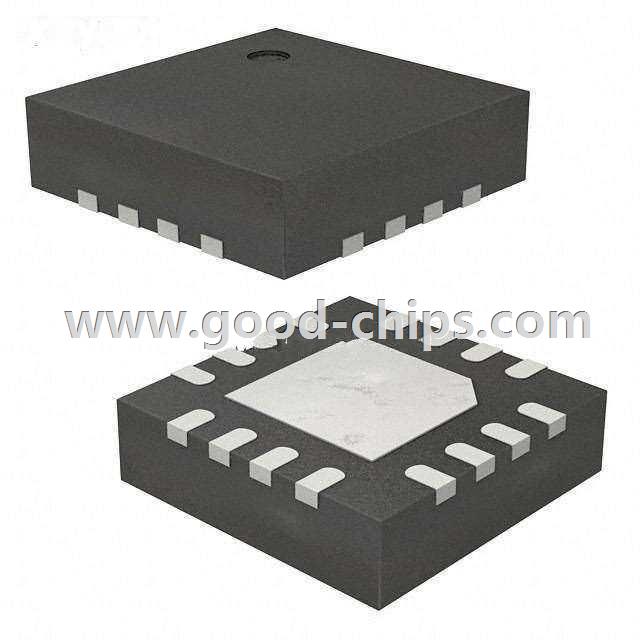

| Package / Case | 16-WFQFN Exposed Pad | |
| Supplier Device Package | 16-QFN (3x3) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PE42641MLBC-Z | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PE42641MLBC-Z is in stock for immediate shipping now. We are the distributor of Peregrine Semiconductor all series components. The condition of PE42641MLBC-Z is new and unused, you can buy PE42641MLBC-Z Peregrine Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PE42641MLBC-Z.
