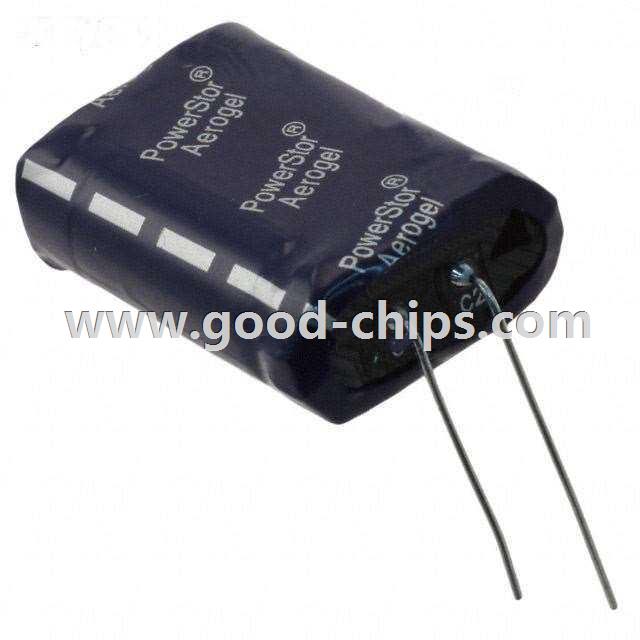

| Manufacturer Part Number: | PHB-5R0H505-R |
|---|---|
| Manufacturer: | Eaton |
| Product Category: | Electric Double Layer Capacitors, Supercaps |
| Available Quantity: | 10466 Pieces |
| Unit Price: | Quote by Email |
| Description: | 5F Supercap 5V Radial, Can, Horizontal 130 mOhm @ 100Hz 1000 Hrs @ 70°C 1.280" L x 0.839" W (32.50mm x 21.30mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PHB-5R0H505-R Datasheet |
| Internal Part Number | 898-PHB-5R0H505-R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | PowerStor Supercapacitors PowerStor Brand Supercapacitors-Size and Selection | |
| PCN Design/Specification | PA,PB,PHB,PHV,PM Series UV Epoxy 01/May/2014 PA,PB,PHB,PHV,PM Series 01/May/2014 | |
| Online Catalog | PowerStor, Radial Can Series | |
| Category | Capacitors | |
| Family | Electric Double Layer Capacitors, Supercaps | |
| Manufacturer | Eaton | |
| Series | PowerStor PHB | |
| Packaging | Bulk | |
| Part Status | Active | |
| Capacitance | 5F | |
| Tolerance | -10%, +30% | |
| Voltage - Rated | 5V | |
| ESR (Equivalent Series Resistance) | 130 mOhm @ 100Hz | |
| Lifetime @ Temp. | 1000 Hrs @ 70°C | |
| Termination | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | Radial, Can, Horizontal | |
| Lead Spacing | 0.209" (5.30mm) | |
| Size / Dimension | 1.280" L x 0.839" W (32.50mm x 21.30mm) | |
| Height - Seated (Max) | 0.433" (11.00mm) | |
| Operating Temperature | -25°C ~ 70°C | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PHB-5R0H505-R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PHB-5R0H505-R is in stock for immediate shipping now. We are the distributor of Eaton all series components. The condition of PHB-5R0H505-R is new and unused, you can buy PHB-5R0H505-R Eaton with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PHB-5R0H505-R.
