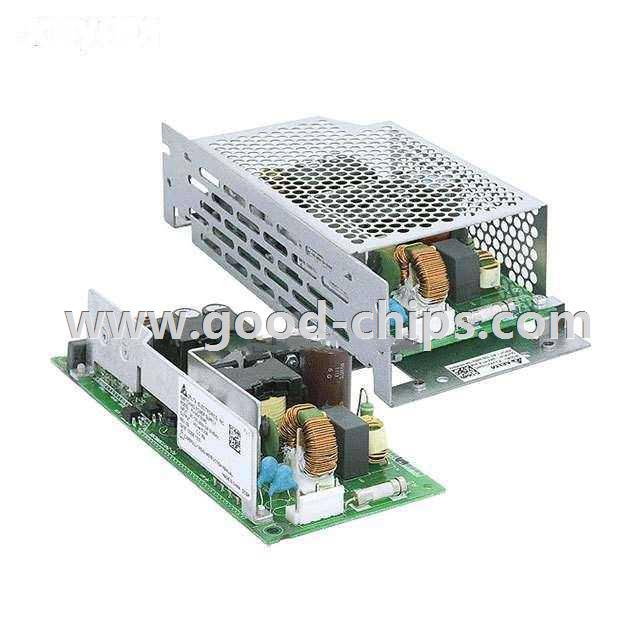

Manufacturer Part Number: | PJ-24V150WCRA |
---|---|
Manufacturer: | Delta Electronics |
Product Category: | AC DC Converters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | AC/DC CONVERTER 24V 150W |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | PJ-24V150WCRA Datasheet |
Internal Part Number | 898-PJ-24V150WCRA | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | PJ-24V150Wx CB Test Cert PJ-24V150Wx EC Declaration of Conformity PJ-12/24V150Wx TUV Cert Standard Power Supplies UL Cert | |
Product Training Modules | PJ and PJB Series of Open Frame Power Supplies | |
Featured Product | Power Management Solutions | |
3D Model | PJ-24V150WyyA.stp | |
2D Drawing | PJ-24V150WyyA.dxf | |
Category | Power Supplies - External/Internal (Off-Board) | |
Family | AC DC Converters | |
Manufacturer | Delta Electronics | |
Series | PJ | |
Part Status | Active | |
Type | Enclosed | |
Number of Outputs | 1 | |
Voltage - Input | 85 ~ 264 VAC | |
Voltage - Output 1 | 24V | |
Voltage - Output 2 | - | |
Voltage - Output 3 | - | |
Voltage - Output 4 | - | |
Current - Output (Max) | 6.3A | |
Power (Watts) | 150W | |
Applications | ITE (Commercial) | |
Voltage - Isolation | 3kV (3000V) | |
Efficiency | 91% | |
Operating Temperature | -10°C ~ 70°C (With Derating) | |
Features | Adjustable Output, PFC, Remote On/Off, Universal Input | |
Mounting Type | Chassis Mount | |
Size / Dimension | 7.40" L x 3.35" W x 1.85" H (188.0mm x 85.0mm x 47.0mm) | |
Minimum Load Required | - | |
Approvals | CB, CE, cURus, TUV | |
Power (Watts) - Max | 150W | |
Standard Package | 72 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | PJ-24V150WCRA | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
PJ-24V150WCRA is in stock for immediate shipping now. We are the distributor of Delta Electronics all series components. The condition of PJ-24V150WCRA is new and unused, you can buy PJ-24V150WCRA Delta Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PJ-24V150WCRA.
