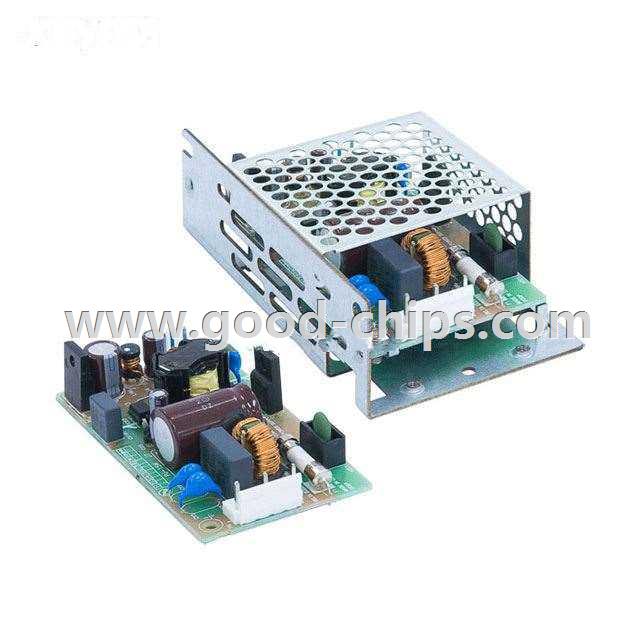

| Manufacturer Part Number: | PJ-5V15WLNA |
|---|---|
| Manufacturer: | Delta Electronics |
| Product Category: | AC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | AC/DC CONVERTER 5V 15W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PJ-5V15WLNA Datasheet |
| Internal Part Number | 898-PJ-5V15WLNA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | PJ-xxV15Wx CB Test Cert PJ-5/12V15Wx EC Declaration of Conformity PJ-xxV15Wx TUV Cert Standard Power Supplies UL Cert | |
| Product Training Modules | PJ and PJB Series of Open Frame Power Supplies | |
| Featured Product | Power Management Solutions | |
| 3D Model | PJ-5V15WyyA.stp | |
| 2D Drawing | PJ-5V15WyyA.dxf | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | AC DC Converters | |
| Manufacturer | Delta Electronics | |
| Series | PJ | |
| Part Status | Active | |
| Type | Open Frame | |
| Number of Outputs | 1 | |
| Voltage - Input | 85 ~ 264 VAC | |
| Voltage - Output 1 | 5V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Voltage - Output 4 | - | |
| Current - Output (Max) | 3A | |
| Power (Watts) | 15W | |
| Applications | ITE (Commercial) | |
| Voltage - Isolation | 3kV (3000V) | |
| Efficiency | 79.5% | |
| Operating Temperature | -10°C ~ 70°C (With Derating) | |
| Features | Adjustable Output, Universal Input | |
| Mounting Type | Chassis Mount | |
| Size / Dimension | 4.23" L x 2.36" W x 1.26" H (107.5mm x 60.0mm x 32.0mm) | |
| Minimum Load Required | - | |
| Approvals | CB, CE, cURus, TUV | |
| Power (Watts) - Max | 15W | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PJ-5V15WLNA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PJ-5V15WLNA is in stock for immediate shipping now. We are the distributor of Delta Electronics all series components. The condition of PJ-5V15WLNA is new and unused, you can buy PJ-5V15WLNA Delta Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PJ-5V15WLNA.
