| Manufacturer Part Number: | PL560-47QC-R |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC VCXO AFM 2X MULTIPLIER CLOCK |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PL560-47QC-R Datasheet |
| Internal Part Number | 898-PL560-47QC-R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Clock Generators | |
| Category | Integrated Circuits (ICs) | |
| Family | Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers | |
| Manufacturer | Microchip Technology | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | * | |
| PLL | No | |
| Input | Crystal | |
| Output | LVCMOS, LVTTL | |
| Number of Circuits | 1 | |
| Ratio - Input:Output | 1:1 | |
| Differential - Input:Output | No/No | |
| Frequency - Max | 160MHz | |
| Divider/Multiplier | No/Yes | |
| Voltage - Supply | 2.97 V ~ 3.63 V | |
| Operating Temperature | 0°C ~ 70°C | |
| Mounting Type | Surface Mount | |

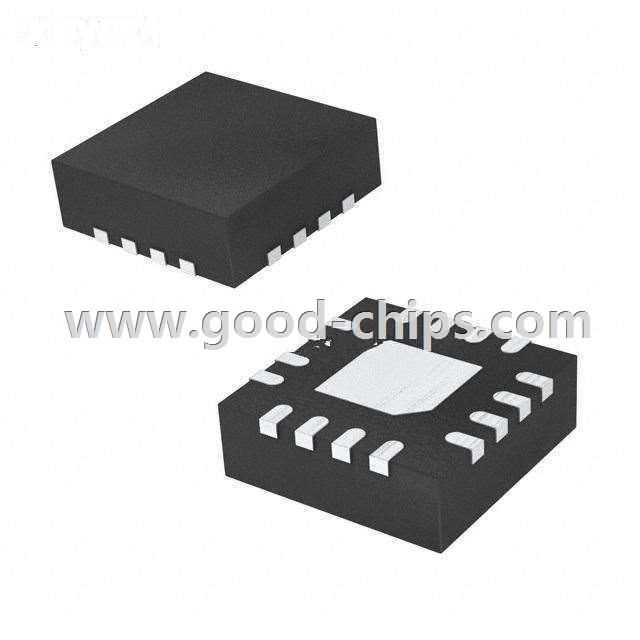

| Package / Case | 16-WFQFN Exposed Pad | |
| Supplier Device Package | 16-QFN (3x3) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PL560-47QC-R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PL560-47QC-R is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of PL560-47QC-R is new and unused, you can buy PL560-47QC-R Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PL560-47QC-R.
