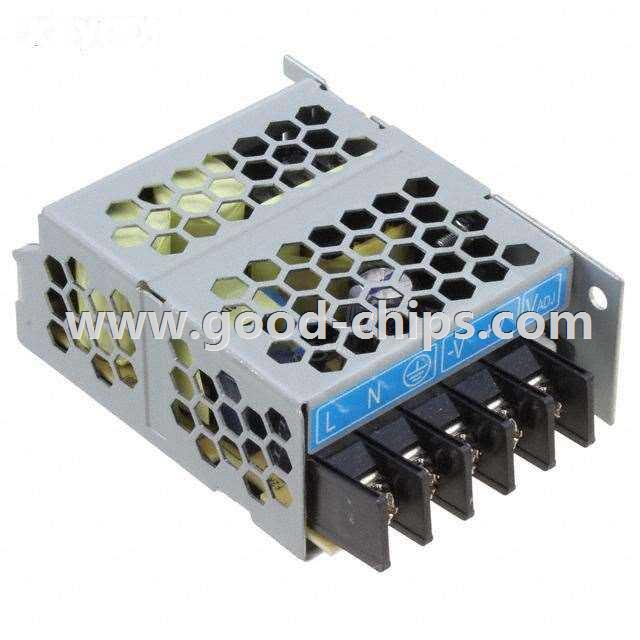

| Manufacturer Part Number: | PMC-05V015W1AA |
|---|---|
| Manufacturer: | Delta Electronics |
| Product Category: | AC DC Converters |
| Available Quantity: | 10064 Pieces |
| Unit Price: | Quote by Email |
| Description: | AC/DC CONVERTER 5V 15W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PMC-05V015W1AA Datasheet |
| Internal Part Number | 898-PMC-05V015W1AA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | PMC-05V015W1Ax CB Test Cert PMC-05V015W1Ax EC Declaration of Conformity PMC-05V015W1xx SIQ Cert Standard Power Supplies UL Cert | |
| Product Training Modules | PMC Series: Panel Mount Power Supplies | |
| Featured Product | DC/DC Converters – Delta Product Groups Power Management Solutions | |
| 3D Model | PMC-05V015W1AA.stp | |
| 2D Drawing | PMC-05V015W1AA.dxf | |
| Online Catalog | PMC Series | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | AC DC Converters | |
| Manufacturer | Delta Electronics | |
| Series | PMC | |
| Part Status | Active | |
| Type | Enclosed | |
| Number of Outputs | 1 | |
| Voltage - Input | 85 ~ 264 VAC | |
| Voltage - Output 1 | 5V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Voltage - Output 4 | - | |
| Current - Output (Max) | 3A | |
| Power (Watts) | 15W | |
| Applications | ITE (Commercial) | |
| Voltage - Isolation | 3kV (3000V) | |
| Efficiency | 80% | |
| Operating Temperature | -20°C ~ 70°C (With Derating) | |
| Features | Adjustable Output, DC Input Capable, Universal Input | |
| Mounting Type | Chassis Mount | |
| Size / Dimension | 3.03" L x 2.01" W x 1.10" H (77.0mm x 51.0mm x 28.0mm) | |
| Minimum Load Required | - | |
| Approvals | CB, CCC, CE, cURus, SIQ | |
| Power (Watts) - Max | 15W | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PMC-05V015W1AA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PMC-05V015W1AA is in stock for immediate shipping now. We are the distributor of Delta Electronics all series components. The condition of PMC-05V015W1AA is new and unused, you can buy PMC-05V015W1AA Delta Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PMC-05V015W1AA.
