| Manufacturer Part Number: | PMEG045V100EPDZ |
|---|---|
| Manufacturer: | NXP Semiconductors |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 13510 Pieces |
| Unit Price: | Quote by Email |
| Description: | DIODE SCHOTTKY 45V 10A CFP15 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PMEG045V100EPDZ Datasheet |
| Internal Part Number | 898-PMEG045V100EPDZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Schotty Diode Design Chg 14/Jun/2016 | |
| Online Catalog | Schottky Diode | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | NXP Semiconductors | |
| Series | Automotive, AEC-Q101 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 45V | |
| Current - Average Rectified (Io) | 10A | |
| Voltage - Forward (Vf) (Max) @ If | 490mV @ 10A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | 17ns | |
| Current - Reverse Leakage @ Vr | 50µA @ 10V | |
| Capacitance @ Vr, F | 1190pF @ 1V, 1MHz | |
| Mounting Type | Surface Mount | |

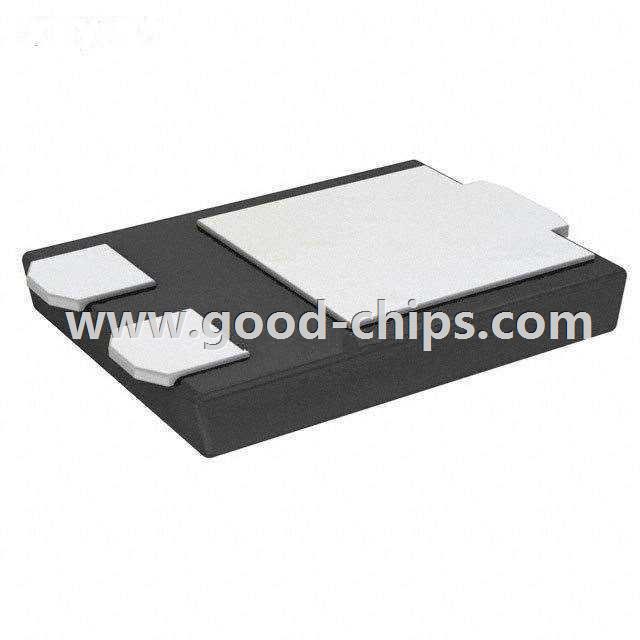

| Package / Case | 3-SMD, Flat Leads | |
| Supplier Device Package | CFP15 | |
| Operating Temperature - Junction | -55°C ~ 175°C | |
| Standard Package | 1,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PMEG045V100EPDZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PMEG045V100EPDZ is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of PMEG045V100EPDZ is new and unused, you can buy PMEG045V100EPDZ NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PMEG045V100EPDZ.
