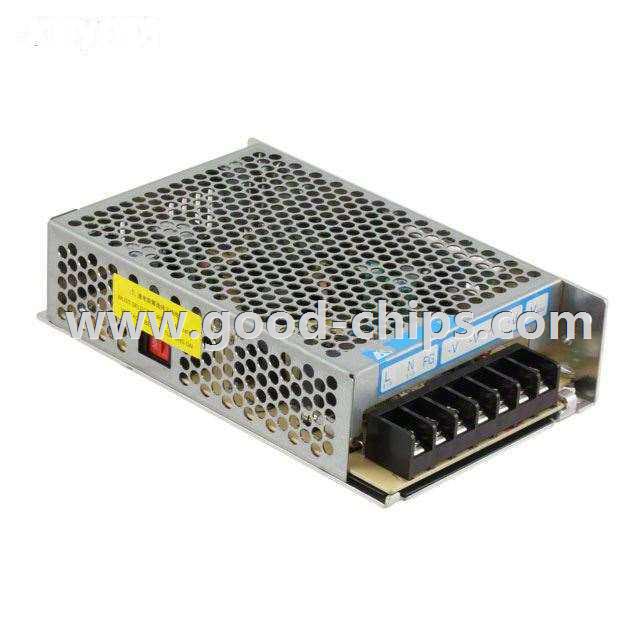

| Manufacturer Part Number: | PMT-12V100W1AA |
|---|---|
| Manufacturer: | Delta Electronics |
| Product Category: | AC DC Converters |
| Available Quantity: | 9253 Pieces |
| Unit Price: | Quote by Email |
| Description: | AC/DC CONVERTER 12V 100W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PMT-12V100W1AA Datasheet |
| Internal Part Number | 898-PMT-12V100W1AA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | PMx-xxV100W1x CB Test Cert PMx-12V100W1Ax EC Declaration of Conformity PMx-12V100W1Ax TUV Cert Standard Power Supplies UL Cert | |
| Featured Product | DC/DC Converters – Delta Product Groups PMT Series Panel Mount Power Supplies Power Management Solutions | |
| 3D Model | PMT-12V100W1Ax.stp | |
| 2D Drawing | PMT-12V100W1Ax.dxf | |
| Online Catalog | PMT Series | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | AC DC Converters | |
| Manufacturer | Delta Electronics | |
| Series | PMT | |
| Part Status | Active | |
| Type | Enclosed | |
| Number of Outputs | 1 | |
| Voltage - Input | 90 ~ 132 VAC, 180 ~ 264 VAC | |
| Voltage - Output 1 | 12V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Voltage - Output 4 | - | |
| Current - Output (Max) | 8.5A | |
| Power (Watts) | 100W | |
| Applications | ITE (Commercial) | |
| Voltage - Isolation | 3kV (3000V) | |
| Efficiency | 86% | |
| Operating Temperature | -10°C ~ 70°C (With Derating) | |
| Features | Adjustable Output | |
| Mounting Type | Chassis Mount | |
| Size / Dimension | 6.22" L x 3.82" W x 1.50" H (158.0mm x 97.0mm x 38.0mm) | |
| Minimum Load Required | - | |
| Approvals | CB, CCC, CE, cURus, TUVgs | |
| Power (Watts) - Max | 100W | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PMT-12V100W1AA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PMT-12V100W1AA is in stock for immediate shipping now. We are the distributor of Delta Electronics all series components. The condition of PMT-12V100W1AA is new and unused, you can buy PMT-12V100W1AA Delta Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PMT-12V100W1AA.
