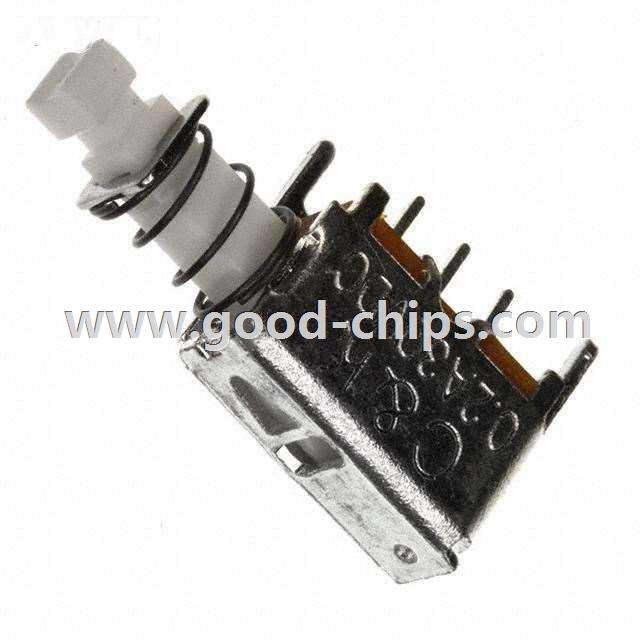

| Manufacturer Part Number: | PN11SHSA03QE |
|---|---|
| Manufacturer: | C&K Components |
| Product Category: | Pushbutton Switches |
| Available Quantity: | 9579 Pieces |
| Unit Price: | Quote by Email |
| Description: | Pushbutton Switch SPDT Standard Through Hole, Right Angle |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PN11SHSA03QE Datasheet |
| Internal Part Number | 898-PN11SHSA03QE | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Introduction to Electromechanical Switches | |
| PCN Design/Specification | PN Series Product improvement 29/Oct/2014 | |
| Online Catalog | PN Series | |
| Category | Switches | |
| Family | Pushbutton Switches | |
| Manufacturer | C&K Components | |
| Series | PN | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Standard | |
| Circuit | SPDT | |
| Switch Function | On-Mom | |
| Current Rating | 200mA (DC) | |
| Voltage Rating - AC | - | |
| Voltage Rating - DC | 30V | |
| Actuator Type | Plunger for Cap | |
| Color - Actuator/Cap | White | |
| Illumination Type, Color | - | |
| Illumination Voltage (Nominal) | - | |
| Mounting Type | Through Hole, Right Angle | |
| Termination Style | PC Pin | |
| Ingress Protection | - | |
| Features | Epoxy Sealed Terminals | |
| Panel Cutout Dimensions | - | |
| Operating Temperature | -10°C ~ 60°C | |
| Mechanical Life | 10,000 Cycles | |
| Electrical Life | 10,000 Cycles | |
| Standard Package | 70 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PN11SHSA03QE | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PN11SHSA03QE is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of PN11SHSA03QE is new and unused, you can buy PN11SHSA03QE C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PN11SHSA03QE.
