| Manufacturer Part Number: | PP-015 |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | Barrel - Power Connectors |
| Available Quantity: | 24605 Pieces |
| Unit Price: | Quote by Email |

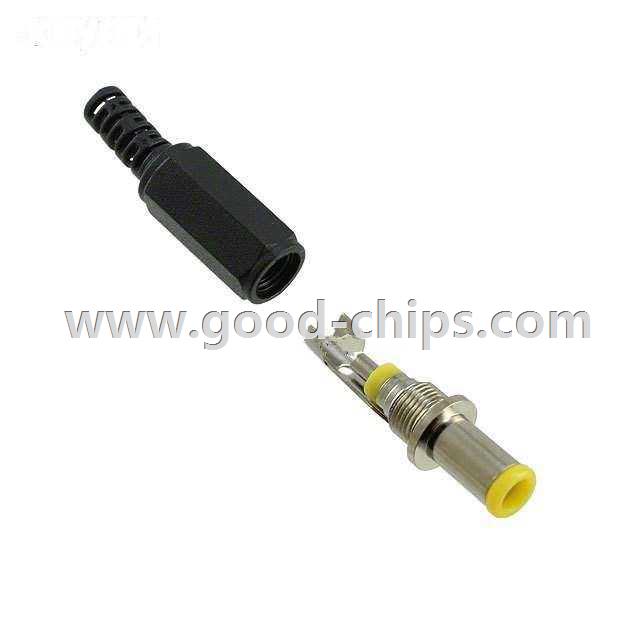

| Description: | CONN DC POWER PLUG 1.0X3.3X5.5 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PP-015 Datasheet |
| Internal Part Number | 898-PP-015 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | PP-015 Cert of Compliance | |
| 3D Model | PP-015 | |
| Online Catalog | CUI Inc | |
| Category | Connectors, Interconnects | |
| Family | Barrel - Power Connectors | |
| Manufacturer | CUI Inc. | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Plug | |
| Gender | Male | |
| Industry Recognized Mating Diameter | 1.00mm ID (0.039"), 3.30mm ID (0.130"), 5.500mm OD (0.217") EIAJ-4 | |
| Actual Diameter | 0.039" (1.00mm ID), 0.217" (5.50mm OD) | |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts | |
| Internal Switch(s) | Does Not Contain Switch | |
| Mounting Type | Free Hanging (In-Line) | |
| Mounting Feature | - | |
| Termination | Solder | |
| Shielding | Unshielded | |
| Features | Strain Relief | |
| Insulation Color | Yellow | |
| Voltage - Rated | 24VDC | |
| Current Rating | 4A | |
| Mating Length/Depth | 0.374" (9.50mm) | |
| Contact Material - Plating | Nickel | |
| Body Material | Brass | |
| Operating Temperature | 0°C ~ 40°C | |
| Includes | 2 pcs - 1 Connector, 1 Handle | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PP-015 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PP-015 is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of PP-015 is new and unused, you can buy PP-015 CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PP-015.
