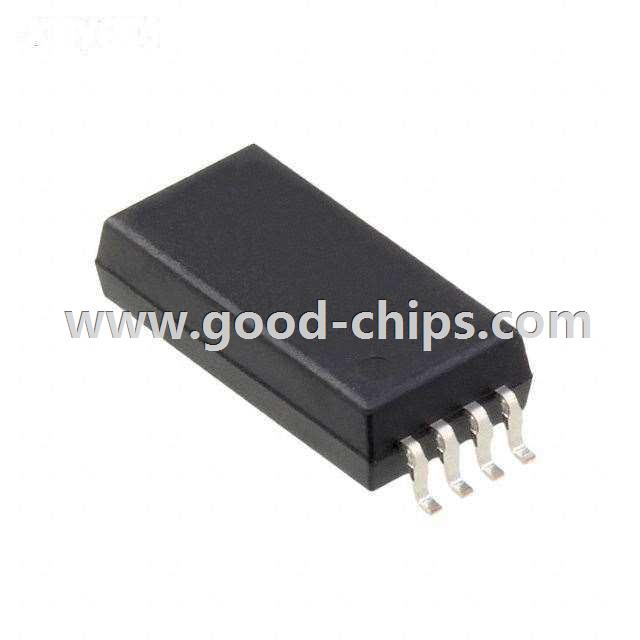

| Manufacturer Part Number: | PS9924-Y-AX |
|---|---|
| Manufacturer: | CEL |
| Product Category: | Optoisolators - Logic Output |
| Available Quantity: | 9281 Pieces |
| Unit Price: | Quote by Email |
| Description: | Logic Output Optoisolator 10Mbps Open Collector 7500Vrms 1 Channel 15kV/µs CMTI 8-LSDIP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PS9924-Y-AX Datasheet |
| Internal Part Number | 898-PS9924-Y-AX | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | PS9924 Series | |
| Category | Isolators | |
| Family | Optoisolators - Logic Output | |
| Manufacturer | CEL | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Number of Channels | 1 | |
| Inputs - Side 1/Side 2 | 1/0 | |
| Voltage - Isolation | 7500Vrms | |
| Common Mode Transient Immunity (Min) | 15kV/µs | |
| Input Type | DC | |
| Output Type | Open Collector | |
| Current - Output / Channel | 25mA | |
| Data Rate | 10Mbps | |
| Propagation Delay tpLH / tpHL (Max) | 75ns, 75ns | |
| Rise / Fall Time (Typ) | 20ns, 5ns | |
| Voltage - Forward (Vf) (Typ) | 1.56V | |
| Current - DC Forward (If) (Max) | 25mA | |
| Voltage - Supply | 2.7 V ~ 5.5 V | |
| Operating Temperature | -40°C ~ 110°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-SOIC (0.543", 13.80mm Width) | |
| Supplier Device Package | 8-LSDIP | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PS9924-Y-AX | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PS9924-Y-AX is in stock for immediate shipping now. We are the distributor of CEL all series components. The condition of PS9924-Y-AX is new and unused, you can buy PS9924-Y-AX CEL with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PS9924-Y-AX.
