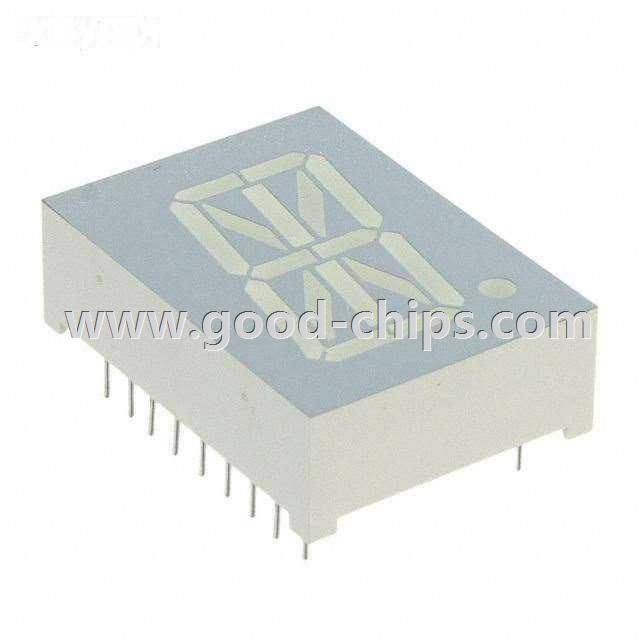

| Manufacturer Part Number: | PSA08-11SRWA |
|---|---|
| Manufacturer: | Kingbright |
| Product Category: | Display Modules - LED Character and Numeric |
| Available Quantity: | 11605 Pieces |
| Unit Price: | Quote by Email |
| Description: | Character LED Display Module Red 16-Segment, Alphanumeric 1 Character Common Anode 1.85V 20mA 1.091" H x 0.787" W x 0.335" D (27.70mm x 20.00mm x 8.50mm) 18-DIP (0.600", 15.24mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PSA08-11SRWA Datasheet |
| Internal Part Number | 898-PSA08-11SRWA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | PSA08-11x.igs PSA08-11x.pro PSA08-11x.sldprt PSA08-11x.stp | |
| Online Catalog | 0.8in 1-Digit 16-Segment Alphanumeric LED Display | |
| Category | Optoelectronics | |
| Family | Display Modules - LED Character and Numeric | |
| Manufacturer | Kingbright | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Number of Characters | 1 | |
| Size / Dimension | 1.091" H x 0.787" W x 0.335" D (27.70mm x 20.00mm x 8.50mm) | |
| Digit/Alpha Size | 0.80" (20.32mm) | |
| Display Type | 16-Segment, Alphanumeric | |
| Common Pin | Common Anode | |
| Color | Red | |
| Voltage - Forward (Vf) (Typ) | 1.85V | |
| Current - Test | 20mA | |
| Millicandela Rating | 27mcd | |
| Wavelength - Peak | 660nm | |
| Power Dissipation (Max) | 75mW | |
| Package / Case | 18-DIP (0.600", 15.24mm) | |
| Standard Package | 18 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PSA08-11SRWA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PSA08-11SRWA is in stock for immediate shipping now. We are the distributor of Kingbright all series components. The condition of PSA08-11SRWA is new and unused, you can buy PSA08-11SRWA Kingbright with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PSA08-11SRWA.
