| Manufacturer Part Number: | PSMN7R5-60YLX |
|---|---|
| Manufacturer: | NXP Semiconductors |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

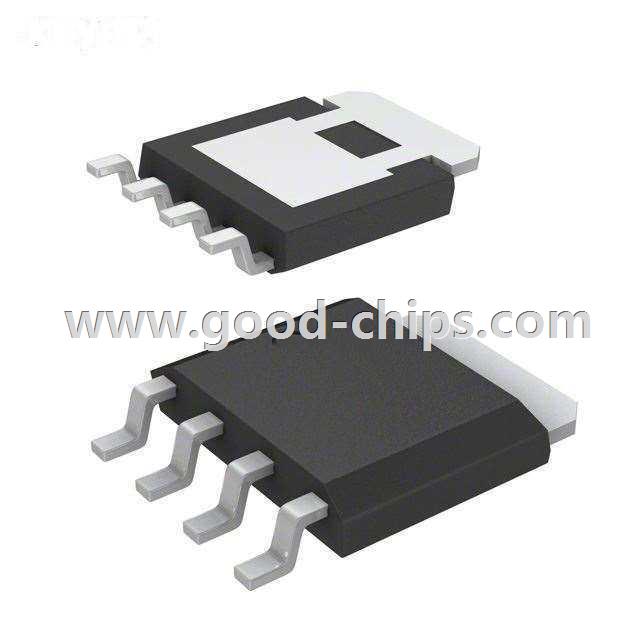

| Description: | MOSFET N-CH 60V LFPAK56 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PSMN7R5-60YLX Datasheet |
| Internal Part Number | 898-PSMN7R5-60YLX | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | NXP Semiconductors | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Logic Level Gate | |
| Drain to Source Voltage (Vdss) | 60V | |
| Current - Continuous Drain (Id) @ 25°C | 86A (Tc) | |
| Rds On (Max) @ Id, Vgs | 7.5 mOhm @ 20A, 10V | |
| Vgs(th) (Max) @ Id | 2.1V @ 1mA | |
| Gate Charge (Qg) @ Vgs | 31nC @ 5V | |
| Input Capacitance (Ciss) @ Vds | 4570pF @ 25V | |
| Power - Max | 147W | |
| Operating Temperature | -55°C ~ 175°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | SC-100, SOT-669 | |
| Supplier Device Package | LFPAK, Power-SO8 | |
| Standard Package | 1,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PSMN7R5-60YLX | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PSMN7R5-60YLX is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of PSMN7R5-60YLX is new and unused, you can buy PSMN7R5-60YLX NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PSMN7R5-60YLX.
