Manufacturer Part Number: | PT-39-B-C21-EPC |
---|---|
Manufacturer: | Luminus Devices Inc. |
Product Category: | LED Lighting - COBs, Engines, Modules |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

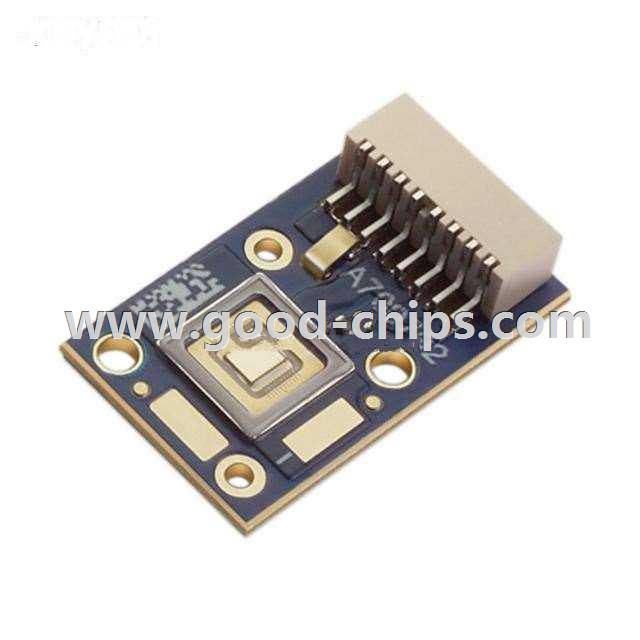

Description: | LED Lighting COBs, Engines, Modules LED Module PT-39 Blue Rectangle |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | PT-39-B-C21-EPC Datasheet |
Internal Part Number | 898-PT-39-B-C21-EPC | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Lighting Product Selector | |
PCN Obsolescence/ EOL | PT-39 Devices 25/Mar/2014 | |
Category | Optoelectronics | |
Family | LED Lighting - COBs, Engines, Modules | |
Manufacturer | Luminus Devices Inc. | |
Series | PT-39 | |
Packaging | Tray | |
Part Status | Obsolete | |
Type | LED Module | |
Color | Blue | |
CCT (K) | - | |
Wavelength | 460nm | |
Configuration | Rectangle | |
Flux @ Current/Temperature - Test | 290 lm (235 lm ~ 345 lm) | |
Current - Test | 9.8A | |
Temperature - Test | 25°C | |
Voltage - Forward (Vf) (Typ) | 3.9V | |
Lumens/Watt @ Current - Test | 8 lm/W | |
Current - Max | 9.8A | |
CRI (Color Rendering Index) | - | |
Viewing Angle | - | |
Features | With Connector | |
Size / Dimension | 26.50mm L x 16.00mm W | |
Height | 6.30mm | |
Light Emitting Surface (LES) | 1.87mm L x 2.09mm W | |
Lens Type | Flat | |
Standard Package | 10 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | PT-39-B-C21-EPC | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
PT-39-B-C21-EPC is in stock for immediate shipping now. We are the distributor of Luminus Devices Inc. all series components. The condition of PT-39-B-C21-EPC is new and unused, you can buy PT-39-B-C21-EPC Luminus Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PT-39-B-C21-EPC.
