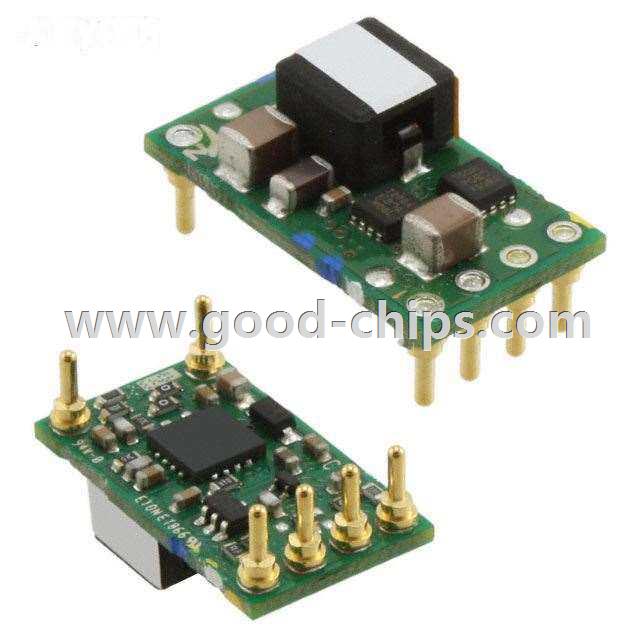

Manufacturer Part Number: | PTH05050YAD |
---|---|
Manufacturer: | Artesyn Embedded Technologies |
Product Category: | DC DC Converters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | CONV DC/DC 5VIN ADJOUT 6A |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | PTH05050YAD Datasheet |
Internal Part Number | 898-PTH05050YAD | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | PTH05050Y Series | |
PCN Packaging | CSA Marking 20/Sep/2013 | |
Category | Power Supplies - Board Mount | |
Family | DC DC Converters | |
Manufacturer | Artesyn Embedded Technologies | |
Series | PTHxx050Y | |
Packaging | Tray | |
Part Status | Active | |
Type | Non-Isolated PoL Module | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 4.5V | |
Voltage - Input (Max) | 5.5V | |
Voltage - Output 1 | 0.55 ~ 1.8 V | |
Voltage - Output 2 | - | |
Voltage - Output 3 | - | |
Current - Output (Max) | 6A | |
Power (Watts) - Manufacture Series | 10.8W | |
Voltage - Isolation | - | |
Applications | ITE (Commercial) | |
Features | Remote On/Off, OCP, UVLO | |
Mounting Type | Through Hole | |
Package / Case | 6-DIP Module | |
Size / Dimension | 0.87" L x 0.50" W x 0.34" H (22.1mm x 12.6mm x 8.5mm) | |
Operating Temperature | -40°C ~ 85°C | |
Efficiency | 88% | |
Power (Watts) - Max | 10.8W | |
Standard Package | 56 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | PTH05050YAD | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
PTH05050YAD is in stock for immediate shipping now. We are the distributor of Artesyn Embedded Technologies all series components. The condition of PTH05050YAD is new and unused, you can buy PTH05050YAD Artesyn Embedded Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PTH05050YAD.
