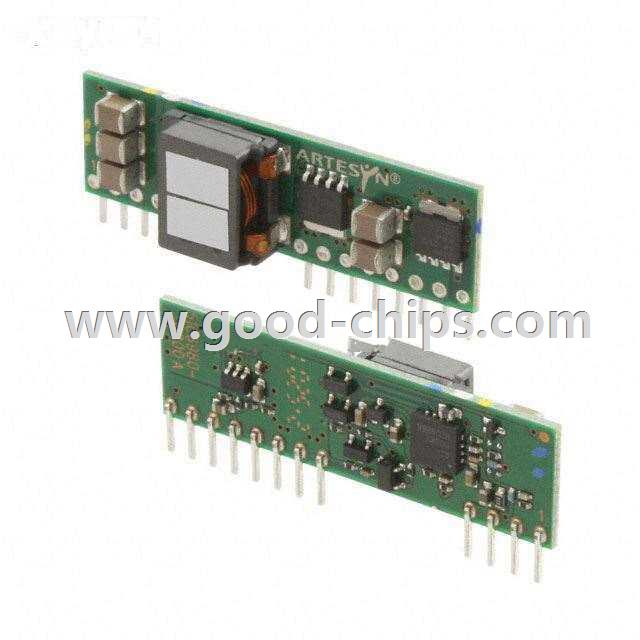

| Manufacturer Part Number: | PTV03020WAH |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | DC DC Converters |
| Available Quantity: | 9049 Pieces |
| Unit Price: | Quote by Email |
| Description: | MODULE PIP 3.3VIN 18A VERT 12SIP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PTV03020WAH Datasheet |
| Internal Part Number | 898-PTV03020WAH | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Manufacturer Product Page | PTV03020WAH Specifications | |
| Online Catalog | PTV03020W Series | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | Texas Instruments | |
| Series | PTV03020W | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | Non-Isolated PoL Module | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 2.95V | |
| Voltage - Input (Max) | 3.65V | |
| Voltage - Output 1 | 0.8 ~ 2.5 V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 18A | |
| Power (Watts) - Manufacture Series | - | |
| Voltage - Isolation | - | |
| Applications | ITE (Commercial) | |
| Features | UVLO | |
| Mounting Type | Through Hole | |
| Package / Case | 12-SIP Module | |
| Size / Dimension | 1.75" L x 0.37" W x 0.50" H (44.5mm x 9.4mm x 12.7mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | 95% | |
| Power (Watts) - Max | 45W | |
| Standard Package | 40 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PTV03020WAH | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PTV03020WAH is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of PTV03020WAH is new and unused, you can buy PTV03020WAH Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PTV03020WAH.
