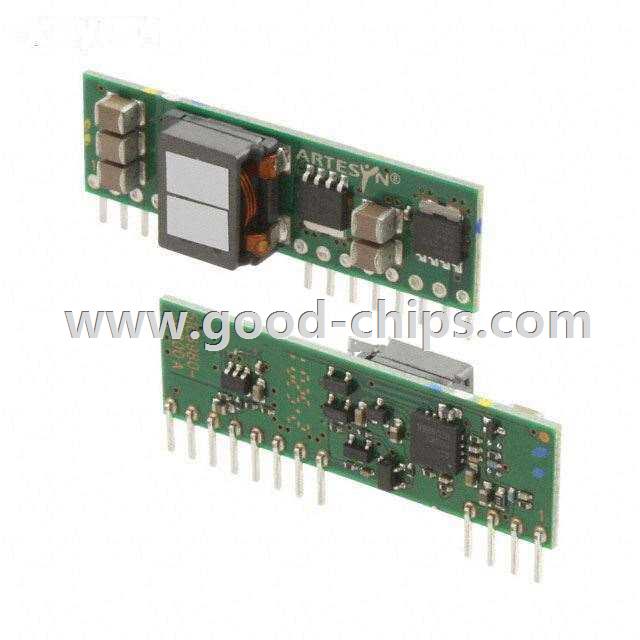

| Manufacturer Part Number: | PTV12020LAD |
|---|---|
| Manufacturer: | Artesyn Embedded Technologies |
| Product Category: | DC DC Converters |
| Available Quantity: | 9337 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONV DC/DC 12 VIN ADJOUT 16A |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PTV12020LAD Datasheet |
| Internal Part Number | 898-PTV12020LAD | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Packaging | CSA Marking 20/Sep/2013 | |
| Online Catalog | PTV12020 Series | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | Artesyn Embedded Technologies | |
| Series | PTV12020 | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | Non-Isolated PoL Module | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 10.8V | |
| Voltage - Input (Max) | 13.2V | |
| Voltage - Output 1 | 0.8 ~ 1.8 V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 16A | |
| Power (Watts) - Manufacture Series | 28.8W | |
| Voltage - Isolation | - | |
| Applications | ITE (Commercial) | |
| Features | Remote On/Off, OCP, OTP, UVLO | |
| Mounting Type | Through Hole | |
| Package / Case | 12-SIP Module | |
| Size / Dimension | 1.75" L x 0.37" W x 0.50" H (44.5mm x 9.4mm x 12.7mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | 89% | |
| Power (Watts) - Max | 28.8W | |
| Standard Package | 84 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PTV12020LAD | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PTV12020LAD is in stock for immediate shipping now. We are the distributor of Artesyn Embedded Technologies all series components. The condition of PTV12020LAD is new and unused, you can buy PTV12020LAD Artesyn Embedded Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PTV12020LAD.
