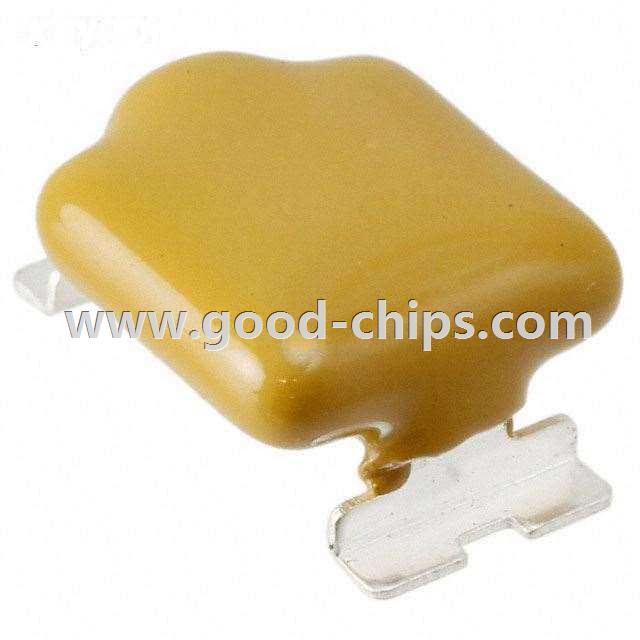

| Manufacturer Part Number: | PTVS15-058C-SH |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | TVS - Diodes |
| Available Quantity: | 9014 Pieces |
| Unit Price: | Quote by Email |
| Description: | TVS DIODE 58VWM 70VC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PTVS15-058C-SH Datasheet |
| Internal Part Number | 898-PTVS15-058C-SH | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Power Transient Voltage Suppressor Diodes | |
| 3D Model | PTVS15-058C-SH.stp | |
| PCN Packaging | Power TVS Diode Label Feb/2016 | |
| Online Catalog | PTVS15-xxxC-SH Series | |
| Category | Circuit Protection | |
| Family | TVS - Diodes | |
| Manufacturer | Bourns Inc. | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Zener | |
| Unidirectional Channels | - | |
| Bidirectional Channels | 1 | |
| Voltage - Reverse Standoff (Typ) | 58V | |
| Voltage - Breakdown (Min) | 64V | |
| Voltage - Clamping (Max) @ Ipp | 110V | |
| Current - Peak Pulse (10/1000µs) | 15000A (15kA) (8/20µs) | |
| Power - Peak Pulse | - | |
| Power Line Protection | No | |
| Applications | General Purpose | |
| Capacitance @ Frequency | - | |
| Operating Temperature | -55°C ~ 125°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | 2-SMD | |
| Supplier Device Package | - | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PTVS15-058C-SH | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PTVS15-058C-SH is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of PTVS15-058C-SH is new and unused, you can buy PTVS15-058C-SH Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PTVS15-058C-SH.
