Manufacturer Part Number: | PV-10A10F |
---|---|
Manufacturer: | Eaton |
Product Category: | Electrical, Specialty Fuses |
Available Quantity: | 9018 Pieces |
Unit Price: | Quote by Email |

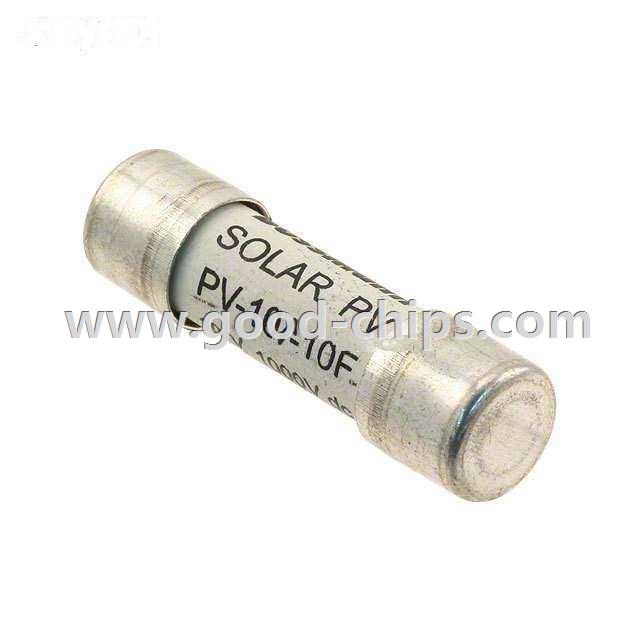

Description: | FUSE CARTRIDGE 10A 1KVDC 5AG |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | PV-10A10F Datasheet |
Internal Part Number | 898-PV-10A10F | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | PV Series | |
Category | Circuit Protection | |
Family | Electrical, Specialty Fuses | |
Manufacturer | Eaton | |
Series | PV | |
Packaging | Bulk | |
Part Status | Active | |
Fuse Type | Cartridge | |
Current Rating | 10A | |
Voltage Rating - AC | - | |
Voltage Rating - DC | 1000V (1kV) | |
Response Time | - | |
Applications | Solar (Photovoltaic) | |
Features | - | |
Class | - | |
Approvals | CCC, CSA, UL | |
Operating Temperature | -40°C ~ 90°C | |
Breaking Capacity @ Rated Voltage | 50kA | |
Mounting Type | Holder | |
Package / Case | 5AG, 10mm x 38.1mm | |
Size / Dimension | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) | |
Melting I²t | 7 | |
DC Cold Resistance | - | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | PV-10A10F | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
PV-10A10F is in stock for immediate shipping now. We are the distributor of Eaton all series components. The condition of PV-10A10F is new and unused, you can buy PV-10A10F Eaton with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PV-10A10F.
