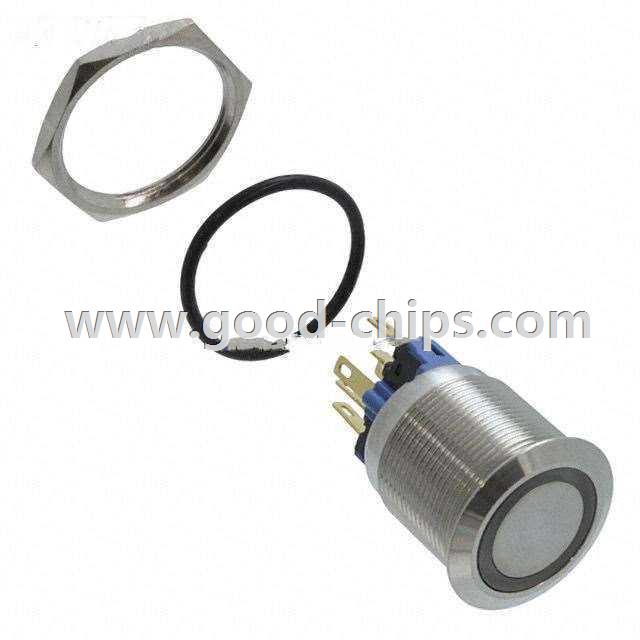

Manufacturer Part Number: | PV7F2T0SS-3G3 |
---|---|
Manufacturer: | E-Switch |
Product Category: | Pushbutton Switches |
Available Quantity: | 9012 Pieces |
Unit Price: | Quote by Email |
Description: | Pushbutton Switch DPST (1-NO, 1-NC) Vandal Resistant, Illuminated Panel Mount, Front |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | PV7F2T0SS-3G3 Datasheet |
Internal Part Number | 898-PV7F2T0SS-3G3 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | PV7, LAMB Series | |
Category | Switches | |
Family | Pushbutton Switches | |
Manufacturer | E-Switch | |
Series | PV7, LAMB | |
Packaging | Bulk | |
Part Status | Active | |
Type | Vandal Resistant, Illuminated | |
Circuit | DPST (1-NO, 1-NC) | |
Switch Function | On-Off, Off-On | |
Current Rating | 2A (DC) | |
Voltage Rating - AC | - | |
Voltage Rating - DC | 48V | |
Actuator Type | Round, Button, Flush | |
Color - Actuator/Cap | Silver | |
Illumination Type, Color | LED, Red/Green | |
Illumination Voltage (Nominal) | 6 VDC | |
Mounting Type | Panel Mount, Front | |
Termination Style | Solder, Quick Connect - 0.110" (2.8mm) | |
Ingress Protection | IP65 - Dust Tight, Water Resistant | |
Features | - | |
Panel Cutout Dimensions | Circular - 22.00mm Dia | |
Operating Temperature | -20°C ~ 55°C | |
Mechanical Life | 1,000,000 Cycles | |
Electrical Life | 50,000 Cycles | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | PV7F2T0SS-3G3 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
PV7F2T0SS-3G3 is in stock for immediate shipping now. We are the distributor of E-Switch all series components. The condition of PV7F2T0SS-3G3 is new and unused, you can buy PV7F2T0SS-3G3 E-Switch with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PV7F2T0SS-3G3.
