| Manufacturer Part Number: | PWDP13006 |
|---|---|
| Manufacturer: | Hammond Manufacturing |
| Product Category: | Power Transformers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

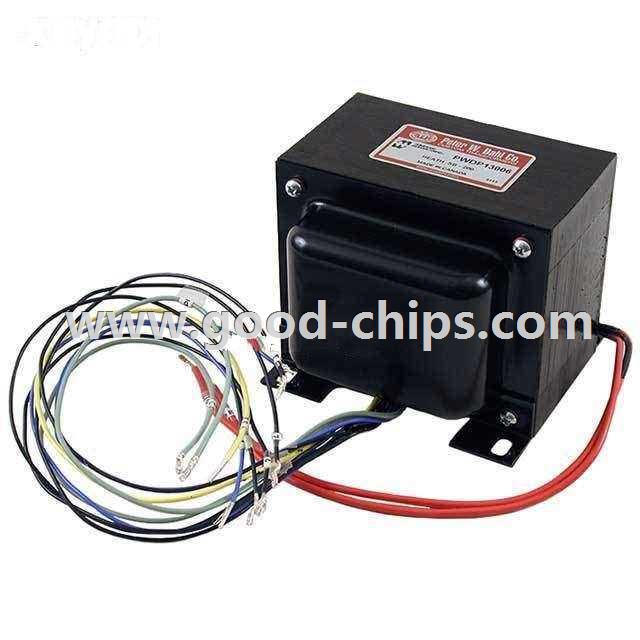

| Description: | HEATH SB-200 TRANSFORMER |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PWDP13006 Datasheet |
| Internal Part Number | 898-PWDP13006 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Transformers | |
| Family | Power Transformers | |
| Manufacturer | Hammond Manufacturing | |
| Series | Peter W. Dahl Design | |
| Part Status | Active | |
| Type | Laminated Core | |
| Voltage - Primary | 120V, 240V | |
| Voltage - Secondary (Full Load) | 800V, 120V, 6.3V | |
| Current - Output (Max) | 500mA | |
| Primary Winding(s) | Dual | |
| Secondary Winding(s) | Triple | |
| Center Tap | Yes | |
| Power - Max | - | |
| Mounting Type | Chassis Mount | |
| Termination Style | Wire Leads | |
| Size / Dimension | 133.35mm L x 132.21mm W | |
| Height - Seated (Max) | 111.13mm | |
| Voltage - Isolation | - | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PWDP13006 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PWDP13006 is in stock for immediate shipping now. We are the distributor of Hammond Manufacturing all series components. The condition of PWDP13006 is new and unused, you can buy PWDP13006 Hammond Manufacturing with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PWDP13006.
