| Manufacturer Part Number: | PX0686/SE |
|---|---|
| Manufacturer: | Bulgin |
| Product Category: | Power Entry Connectors - Inlets, Outlets, Modules |
| Available Quantity: | 9506 Pieces |
| Unit Price: | Quote by Email |

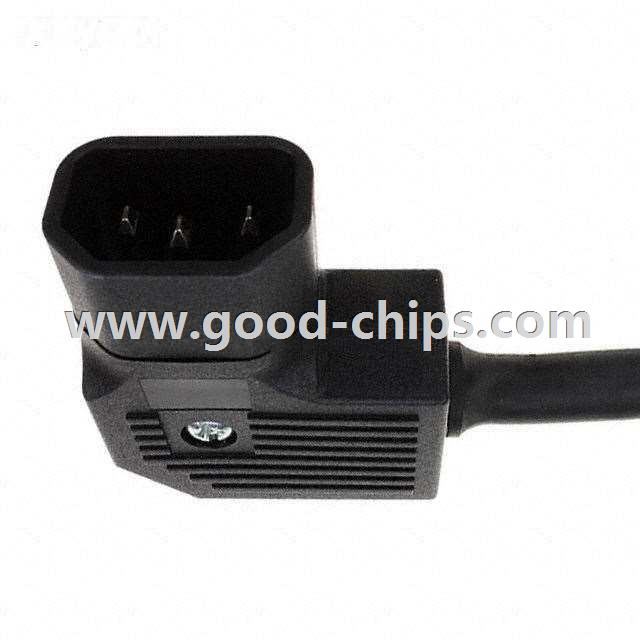

| Description: | Power Entry Connector Plug, Male Blades IEC 320-2-2/E (C13 Variant) Free Hanging (In-Line), Right Angle |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PX0686/SE Datasheet |
| Internal Part Number | 898-PX0686/SE | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | IEC Connectors Overview | |
| Online Catalog | Power Entry Plugs - Bulgin | |
| Category | Connectors, Interconnects | |
| Family | Power Entry Connectors - Inlets, Outlets, Modules | |
| Manufacturer | Bulgin | |
| Series | PX | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Style | IEC 320-2-2/E (C13 Variant) | |
| Connector Type | Plug, Male Blades | |
| Current - IEC | 10A | |
| Voltage - IEC | 250VAC | |
| Current - UL | - | |
| Voltage - UL | - | |
| Filter Type | Unfiltered - Commercial | |
| Fuse | No | |
| Number of Positions | 3 | |
| Mounting Type | Free Hanging (In-Line), Right Angle | |
| Termination | Screw | |
| Switch Features | - | |
| Features | - | |
| Fuse Holder, Drawer | - | |
| Panel Cutout Dimensions | - | |
| Panel Thickness | - | |
| Material Flammability Rating | UL94 V-0 | |
| Ingress Protection | - | |
| Approvals | CSA, ENEC, RCM, UL, VDE | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PX0686/SE | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PX0686/SE is in stock for immediate shipping now. We are the distributor of Bulgin all series components. The condition of PX0686/SE is new and unused, you can buy PX0686/SE Bulgin with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PX0686/SE.
