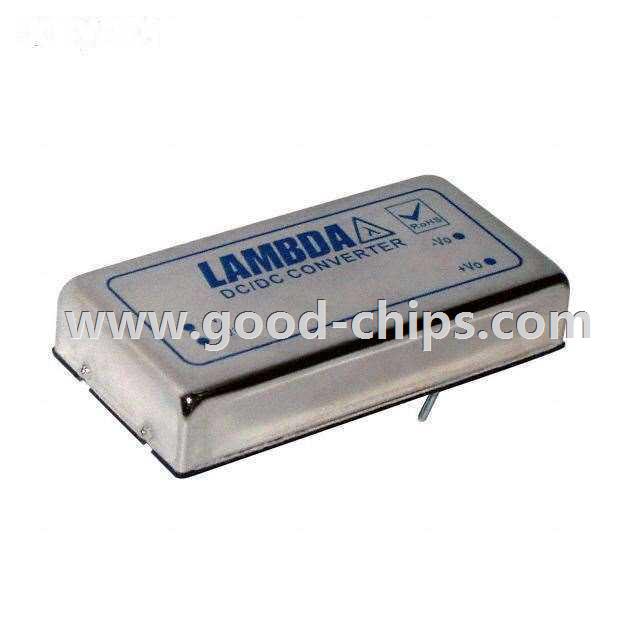

| Manufacturer Part Number: | PXD2012S3P3 |
|---|---|
| Manufacturer: | TDK-Lambda Americas Inc. |
| Product Category: | DC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONVERT DC-DC 3.3V 20W 5A |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PXD2012S3P3 Datasheet |
| Internal Part Number | 898-PXD2012S3P3 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | PXD30,20 Series /P Marking | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | TDK-Lambda Americas Inc. | |
| Series | PXD | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Isolated Module | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 9V | |
| Voltage - Input (Max) | 18V | |
| Voltage - Output 1 | 3.3V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 5A | |
| Power (Watts) - Manufacture Series | 20W | |
| Voltage - Isolation | 1.6kV (1600V) | |
| Applications | ITE (Commercial) | |
| Features | Remote On/Off, OCP, OVP, SCP | |
| Mounting Type | Through Hole | |
| Package / Case | 6-DIP Module | |
| Size / Dimension | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | |
| Operating Temperature | - | |
| Efficiency | 84% | |
| Power (Watts) - Max | 17W | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PXD2012S3P3 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PXD2012S3P3 is in stock for immediate shipping now. We are the distributor of TDK-Lambda Americas Inc. all series components. The condition of PXD2012S3P3 is new and unused, you can buy PXD2012S3P3 TDK-Lambda Americas Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PXD2012S3P3.
