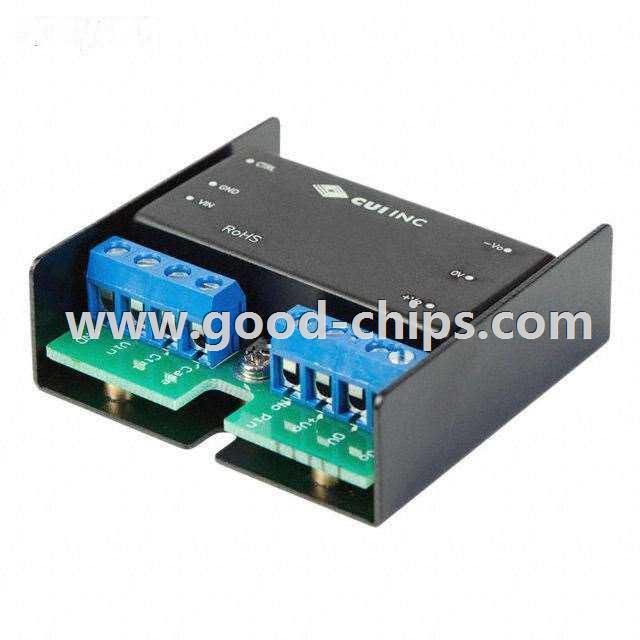

| Manufacturer Part Number: | PYB15-Q48-D5-U |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | DC DC Converters |
| Available Quantity: | 9040 Pieces |
| Unit Price: | Quote by Email |
| Description: | DC/DC CONVERTER +/-5V 15W UFRM |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PYB15-Q48-D5-U Datasheet |
| Internal Part Number | 898-PYB15-Q48-D5-U | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Reliability Considerations for Power Supplies Power Supply Safety Standards, Agencies and Marks | |
| RoHS Information | PYB15-U Series Cert of Compliance | |
| Featured Product | PYB Series High-Efficiency 10 ~ 30 W DC-DC Converters 10-30 W Chassis Mount DC-DC Converters Industrial Applications | |
| 3D Model | PYB15-Q48-D5-U | |
| Online Catalog | PYB15-U Series | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | DC DC Converters | |
| Manufacturer | CUI Inc. | |
| Series | PYB15-U | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Isolated | |
| Voltage - Input | 18 ~ 75 V | |
| Output | ±5V | |
| Number of Outputs | 2 | |
| Output - 1 @ Current (Max) | 5 VDC @ 1.5A | |
| Output - 2 @ Current (Max) | -5 VDC @ 1.5A | |
| Output - 3 @ Current (Max) | - | |
| Output - 4 @ Current (Max) | - | |
| Power (Watts) | 15W | |
| Applications | - | |
| Mounting Type | Chassis Mount | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | 86% | |
| Package / Case | Module | |
| Size / Dimension | 2.16" L x 2.06" W x 0.75" H (55.0mm x 52.3mm x 19.1mm) | |
| Power (Watts) - Max | 15W | |
| Approvals | EN, IEC | |
| Standard Package | 90 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PYB15-Q48-D5-U | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PYB15-Q48-D5-U is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of PYB15-Q48-D5-U is new and unused, you can buy PYB15-Q48-D5-U CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PYB15-Q48-D5-U.
