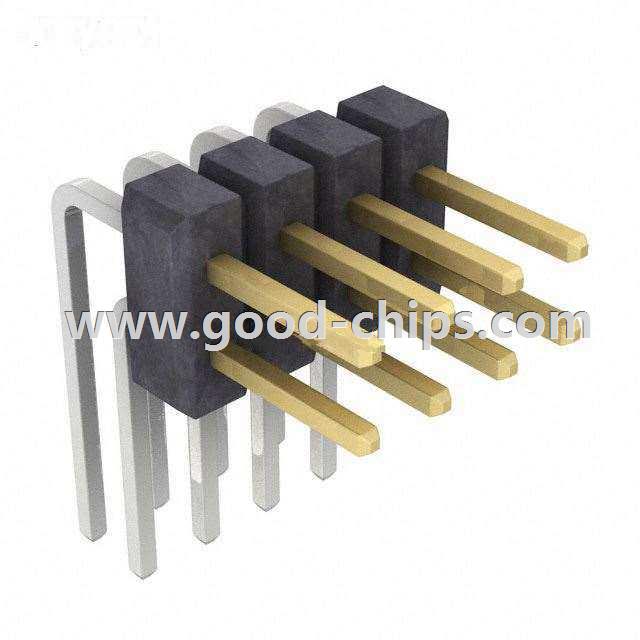

| Manufacturer Part Number: | PZC04DBCN |
|---|---|
| Manufacturer: | Sullins Connector Solutions |
| Product Category: | Rectangular Connectors - Headers, Male Pins |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 8 Positions Header, Unshrouded Connector 0.100" (2.54mm) Through Hole, Right Angle Gold |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PZC04DBCN Datasheet |
| Internal Part Number | 898-PZC04DBCN | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Male Pins | |
| Manufacturer | Sullins Connector Solutions | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Contact Type | Male Pin | |
| Connector Type | Header, Unshrouded | |
| Number of Positions | 8 | |
| Number of Positions Loaded | All | |
| Pitch | 0.100" (2.54mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.100" (2.54mm) | |
| Contact Mating Length | 0.230" (5.84mm) | |
| Mounting Type | Through Hole, Right Angle | |
| Termination | Solder | |
| Fastening Type | - | |
| Features | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 10µin (0.25µm) | |
| Color | Black | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PZC04DBCN | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PZC04DBCN is in stock for immediate shipping now. We are the distributor of Sullins Connector Solutions all series components. The condition of PZC04DBCN is new and unused, you can buy PZC04DBCN Sullins Connector Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PZC04DBCN.
