| Manufacturer Part Number: | R5F211A2NP#V0 |
|---|---|
| Manufacturer: | Renesas Electronics America |
| Product Category: | Embedded - Microcontrollers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | R8C R8C/1x/1A Microcontroller IC 16-Bit 20MHz 8KB (8K x 8) FLASH 28-HWQFN (5x5) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | R5F211A2NP#V0 Datasheet |
| Internal Part Number | 898-R5F211A2NP#V0 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Featured Product | Flasher Series of Production Tools | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microcontrollers | |
| Manufacturer | Renesas Electronics America | |
| Series | R8C/1x/1A | |
| Packaging | Tray | |
| Part Status | Obsolete | |
| Core Processor | R8C | |
| Core Size | 16-Bit | |
| Speed | 20MHz | |
| Connectivity | I²C, SIO, SSU, UART/USART | |
| Peripherals | LED, POR, Voltage Detect, WDT | |
| Number of I/O | 13 | |
| Program Memory Size | 8KB (8K x 8) | |
| Program Memory Type | FLASH | |
| EEPROM Size | - | |
| RAM Size | 512 x 8 | |
| Voltage - Supply (Vcc/Vdd) | 2.7 V ~ 5.5 V | |
| Data Converters | A/D 4x10b | |
| Oscillator Type | Internal | |
| Operating Temperature | -20°C ~ 85°C (TA) | |

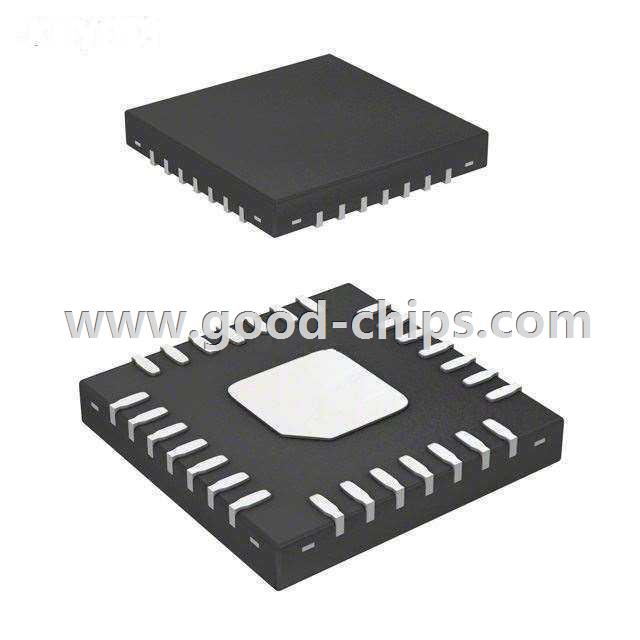

| Package / Case | 28-WFQFN Exposed Pad | |
| Supplier Device Package | 28-HWQFN (5x5) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | R5F211A2NP#V0 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
R5F211A2NP#V0 is in stock for immediate shipping now. We are the distributor of Renesas Electronics America all series components. The condition of R5F211A2NP#V0 is new and unused, you can buy R5F211A2NP#V0 Renesas Electronics America with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for R5F211A2NP#V0.
